Product Details:
|
Modulation: | COFDM | RF Power: | 100 Watt (adjustable) |
---|---|---|---|
Video Compression: | H.264 | Video Input: | HDM-I; SDI; CVBS |
Frequency: | 300MHz-860MHz(adjustable) | Weight: | 26kg |
Highlight: | 100 Watt COFDM Video Transmitter,Wireless COFDM Video Transmitter,Long Distance COFDM Wireless Video Transmitter |

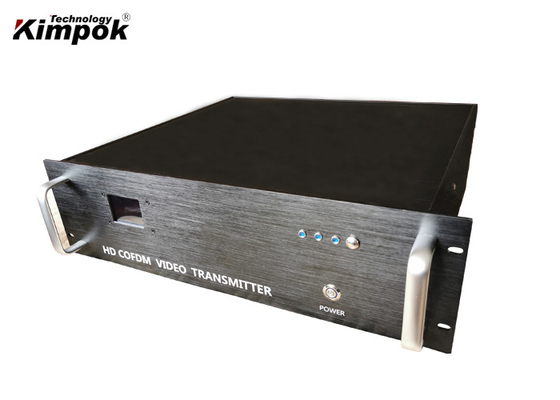

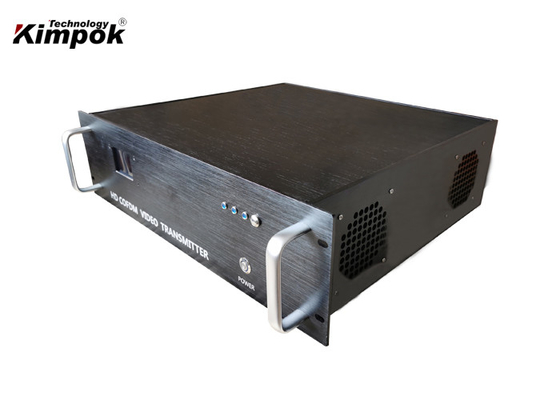

100 Watt High Power Rugged COFDM Wireless Video Transmitter for Long Distance
Description:
The KP-CM100H is a powerful COFDM digital wireless video & data transmitter from Kimpok Technology. With latest COFDM modulation, narrow-band, and H.264 encoder technology as its code, the KP-CM100H COFDM HD video voice digital transmitter sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments.
The high power and high definition makes the KP-CM100H COFDM video transmitter ideal for large UAV super long range video communication and mobile vehicle to vehicle, or mobile vehicle to command center building wireless video communication applications, enabling true long range HD video & data transmission.
Special features:
* 1080P high quality video images transmission
* strong safety with AES user-defined passwords
* ultra low latency, 100ms end to end
* 100 Watts high power and low latency
* support NLOS and fast moving environments but still in stable signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission
Specification:
Voltage | DC28V |
Bandwidth | 2/2.5/4/8MHz |
Frequency video | 300MHz~900MHz, 1MHz increment; other Frequency can be customized |
Frequency data (Option) | 433MHz or other band |
Modulation | COFDM 2K |
RF power | 60-100W(adjustable) |
FEC | 1/2, 2/3, 3/4, 7/8 |
Guard interval | 1/32, 1/16, 1/8, 1/4 |
Video port | HDM-I /HD-SDI / CVBS |
Data port (Option) | RS232 / RS485 |
Video resolution | 1080P/i & 720P/i |
Video coding | H.264/H.265 |
Video format | PAL/NTSC |
Encryption | AES128/256bits |
Dimension | 575*505*360mm |
Weight | 26kg |
Parameter setting | user manually setting via LCD display |

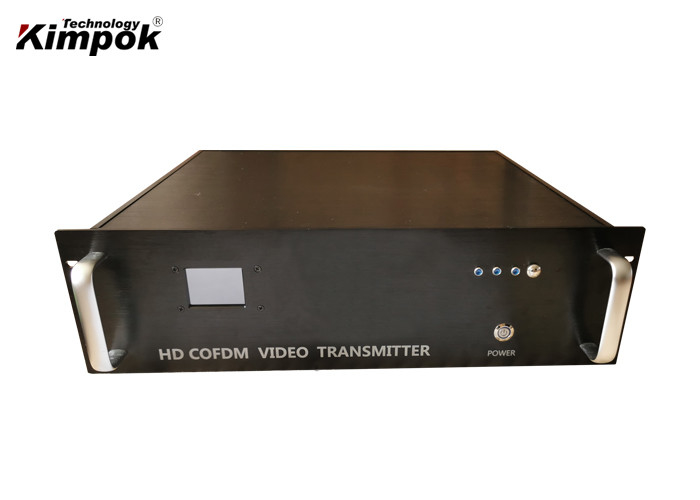

Front side:
Back side:
