Product Details:
|
| RF Power: | 5 Watt | RF Bandwidth: | 1/2/4/8MHz |
|---|---|---|---|
| Serial Port: | RS232/RS485 | Encryption: | AES 128/256 Bits |
| Ethernet: | Standard RJ45 Port *2 | Weight: | 8.7kg |
| High Light: | FDD COFDM Wireless Transmitter,8.7kg COFDM Wireless Transmitter,RJ45 Long Range Transmitter Receiver |
||
FDD Long Range Communication in Network, COFDM Ethernet Transceiver with RJ45
Description:

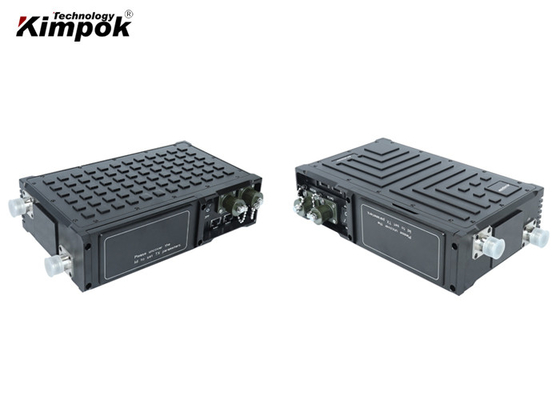

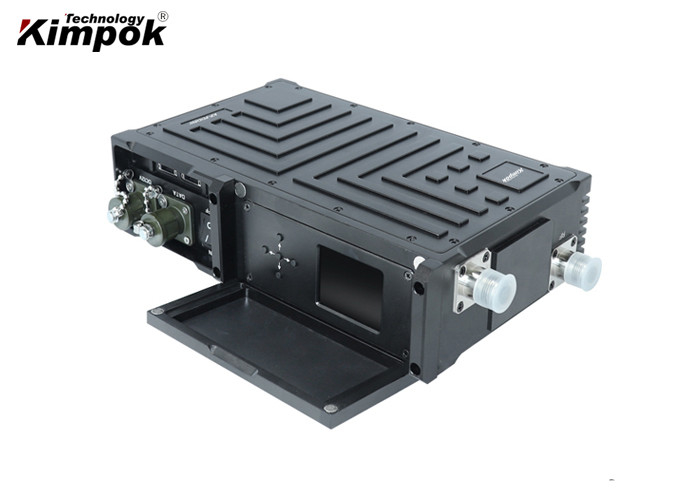

KP-FDD5W is a new COFDM digital transmitter receiver with Frequency-division duplexing (FDD) technology, designed with dual-mode RF transceiver system which operate at different carrier frequencies ideal for long range communication in network solution. The FDD technique uses different frequency bands for video radio sending and receiving with no interference.
COFDM FDD IP/Ethernet video audio radio is specially designed for man-pack outdoor tactical mission for soliders. KP-FDD5W wireless Ethernet video voice transmitter adopts the latest COFDM technology, which has strong anti-interference/anti-jamming ability in harsh environment, and the FDD technology for super stable performance in long range NON-LINGE-OF-SIGNT wireless environment.
IP Ethernet transceiver is implement of transparent IP ethernet interface that able balance and stable high-speed data rate with 30Mbit/s each for uplink and downlink.Highly integrated with Network / modulator& demodulator and full-band rf output all-in-one,which is ideal for broadcasting, public security system, emergency system, police, military and ect required for long distance wireless network links.
Feature:
Specification:
| Power supply | DC12V/2.3A |
| TX output frequency | 1400MHz (can be customized 300~3300MHz), 1MHz increment |
| RX output frequency | 1400MHz (can be customized 300~3300MHz), 1MHz increment |
| RF bandwidth | 1/2/4/8MHz |
| RF power output | 37dBm (5 Watt) |
| Encryption/decryption mode | AES128 bits(user-defined password) |
| Modulation | FDD-COFDM 2K |
| Transfer rate | 2x30 Mbit/s uplink and downlink |
| RF connector | N type *2 |
| Ethernet | Standard RJ45 port *2 |
| Serial port | RS232/RS485 serial port |
| Baud rate | 115200bps maximum |
| Two way audio | Aviation plug |
| LCD panel with keypad | Easy to set the related parameters |
| Dimension | 200*130*60mm |
| Weight | 3kg |
| Transmit distance | 2~5km NLOS / 5~10km LOS; 70km from air to ground |
