FDD COFDM IP digital video transmitter and receiver 921600bps OEM

921600bps FDD COFDM IP Transceiver for Bi-directional Communication

Description:

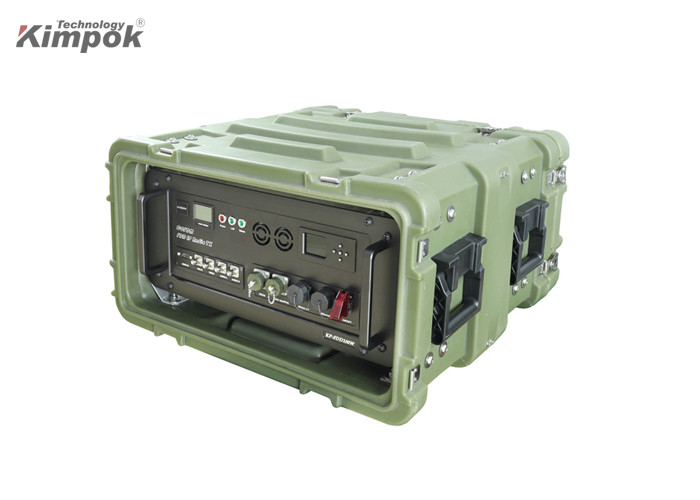

KP-FDD100W is a new COFDM digital transmitter receiver with Frequency-division duplexing (FDD) technology,designed with dual-mode RF transceiver architecture and system which operate at different carrier frequencies ideal for long range communication in network solution. The FDD technique uses different frequency bands for send and receive operations, the sending and receiving data signals don't interfere with each other that is suprior to Time Division Duplex (TDD) for symmetric traffic such as voice applications in broadband wireless networks.

KP-FDD100W Wireless Ethernet transceiver is implement of transparent IP ethernet interface that able balance and stable high-speed data rate with 30Mbit/s each for uplink and downlink.Highly integrated with Network/modulator& demodulator and full-band rf output all-in-one,which is ideal for Broadcasting,public security system,emergency system,Police,military and ect required for long distance wireless network links.

Feature:

• Dual frequency is ideal for IP solution long-distance required;
• COFDM modulation,different carrier frequencies technology;
• Work well in NLOS fast moving condition;
• Low latency and great data send from end to end;
• Great transfer rate for uplink and downlink;
• Transparent IP ethernet and serial data sync telecommunication;
• Dynamic AES encryption 128bits;
• Narrowband 1M/2M/4M/8MHz available;
• Integrated design, super linear;
• Simple operation,User easy to set the related parameters by LCD panel with keypads.

Specification:
