Product Details:
|
| Modulation: | COFDM 2K QPSK | Frequency: | 300~900MHz(option), 1.2G/2.4G/5.8GHz(customized) |
|---|---|---|---|
| RF Power Output: | 1~5 Watt (adjustable) | Voltage: | DC11-14.5V |
| Current: | 2.7A | Distance: | 100 Km LOS Distance (on Helicopter), 3~5km NLOS (in City) |
| High Light: | cofdm video transmission,mini cofdm transmitter,Two Way Speaking COFDM Video Transmitter |
||

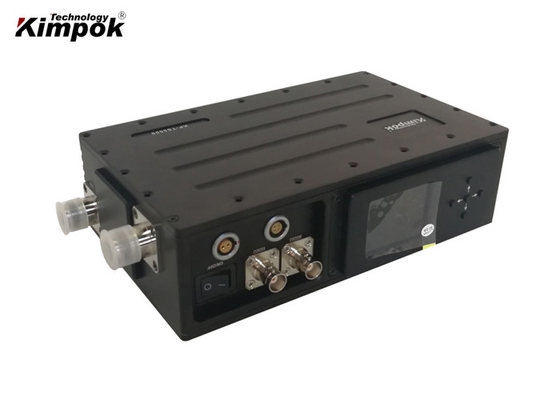

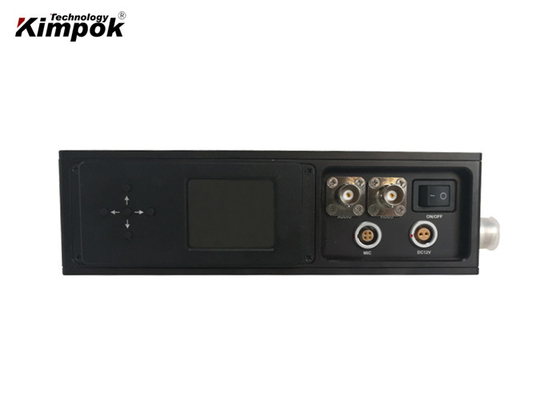

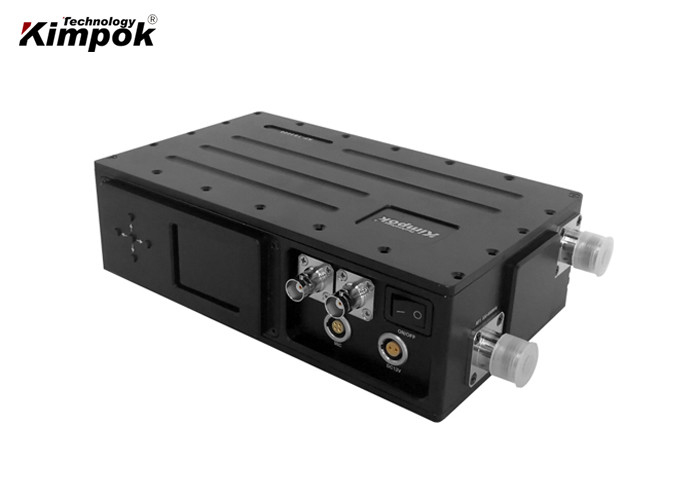

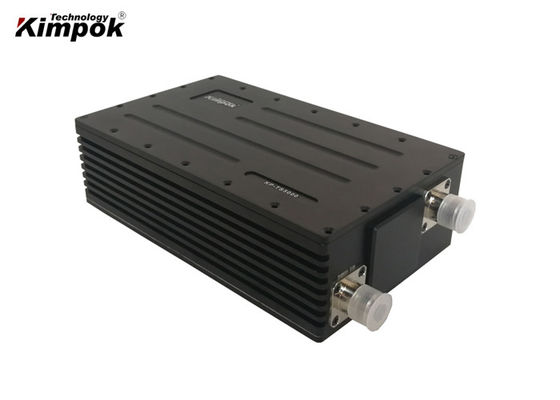

Two Way Speaking COFDM Video Transmitter 5km NLOS Wireless AV Sender with Data
Introduction:
This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture in resolution 1920*1080P, short latency.
This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.
Features:
Tech Specification:
Transmitter parameters:
| Frequency | 300-900MHz(adjustable),1.2GHz/2.4GHz/5.8GHz(customized) |
| RF output Power | 2-5Watt(adjustable) |
| Voltage | DC12V |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| Transfer rate | 2/4/6/8Mbps(optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Video Input | 1 line PAL/NTSC analog video |
| Audio Input | Analog stereo left and right channels |
| Video Compression | H.264 |
| Data encryption | AES 265 bit / ALLTECH Basic scrambling |
| Flatness |
≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) |
| Carrier | 2K,8K |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| Resolution | 720×576(PAL) , 720×480(NTSC) |
| RF Interface | N(F) |
| Video Format | PAL/NTSC(self-adaption) |
| AV Interface | BNC |
| Case Material | Aluminum alloy, waterproof |
| Built-in battery | 2300mA, 3Hrs |
| Work environment | -30~70° |
| Distance | 1-3km NLOS; 100km LOS from air to ground |
| Size | 180*100*60mm |
| Weight | 1444g(net weight) |
Receiver parameters:
| Frequeny/AV | 300~900MHz(adjustable),1.2G/2.4G/5.8GHz(customized) |
| Frequeny/DATA | 200-270MHz(adjustable) |
| Modulation | COFDM 2K QPSK |
| Receive sensitivity | -105dBm |
| Voltage | DC12-14V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| RF Level Input | -92dBm~-20dBm / -105dBm~-20dBm |
| RF Impedance | 50Ω |
| Carrier | 2K,8K |
| FEC | 1/2,2/3,3/4,5/6, 7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Bandwidth | 2/2.5/4/8M(adjustable) |
| Video Decoding | ISO/IEC13818-2 MPEG-2MP@ML |
| AV output | 2 Audio output+2Video input |
| Audio output mode | Analog stereoStereo unbalanced 300/200 mV |
| Video resolution | 1080P; 720P |
| Video format | PAL / NTSC (autoadaptation) |
| Audio output | Analog stereo left and right channels |
| aspect ratio | 4:3, 16:9 |
| Encryption | AES 128 bit / ALLTECH Basic scrambling |
| Carrier | 2K,8K |
| Video Compression | MPEG-2 4:2:0 /MPEG-4 (optional) |
| Resolution | 720×576(PAL) , 720×480(NTSC) |
| RS232/RS485 control interface | Standard RS232/RS485 level,9600,8,N,1 |
| RS232/RS485 data interface | Standard RS232/RS485 level ,support 1200~115200 |
| RF Interface | N(type) |
| AV Interface | BNC |
| OperatingTemperature | -25℃~55℃ |
| Storage Temperature | -40℃~70℃ |
| Size | 430*310*65mm(1U chassis) |
| Weight | 1.5kg |
|
Packaging Details |
|
|
Accessories |
2*antennas (customized); RF cables and mounted kits. |
|
Style |
Paper carton |
|
Size |
Undetermined |
