Product Details:
|
| Frequency: | 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized) | RF Output Power: | 2-5W (adjustable) |
|---|---|---|---|
| Power Supply: | DC 12V | AV Interface: | HD-MI / SDI; CVBS |
| Video Format: | PAL/NTSC(self-adaption) | Encryption: | AES 128/256 |
| High Light: | cofdm video transmission,mini cofdm transmitter,AES 265 Bit Encryption Video Transmitter |
||

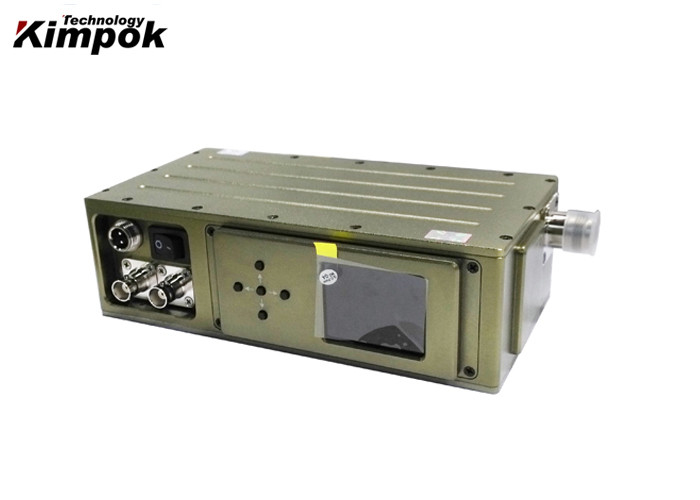

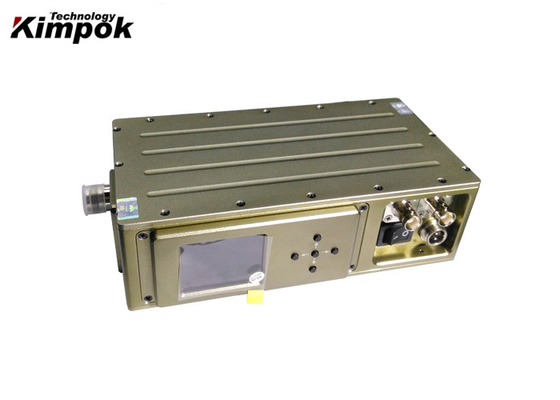

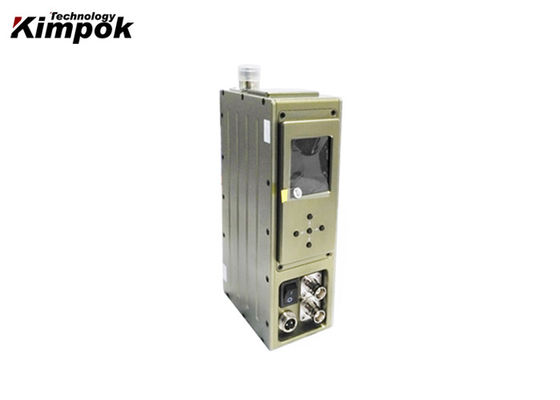

Military Grade Digital Long Range Wireless Video Transmitter AES 265 Bit Encryption
Long Range Wireless Video Transmitter Description:
The military backpack system KP-TS5000 is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission under the condition of heavy obstacles, such as many building barriers, severe electromagnetic interference, remote mountain town or other harsh environments.
It also can be used on UAV, EOD robot, fire fighting robot or man-pack application.
The KP-TS5000 is with H.265/H.264 video compression, HD-MI or SDI and CVBS HD and SD video input, support AES 128/256 bit encryption.
Features:
Tech Specification:
Transmitter parameters:
| Frequency | 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized) |
| RF output Power | 2 ~ 5Watt(adjustable) |
| Voltage | DC 12V |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| Transfer rate | 2/4/6/8Mbps(optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Video Input | 1 line PAL/NTSC analog video |
| Audio Input | Analog stereo left and right channels |
| Video Compression | H.265 / H.264 / MPEG-4 |
| Data encryption | AES 128/265 bit user-defined password |
| Flatness |
≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) |
| Carrier | 2K,8K |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| Resolution | 1080P/I; 720P/I |
| RF Interface | N(F) |
| Video Format | PAL/NTSC(self-adaption) |
| AV Interface | BNC |
| Case Material | Aluminum alloy, waterproof |
| Work environment | -30~70° |
| Distance | 5~10km LOS, 1~3km NLOS on ground; 100km LOS from air to ground |

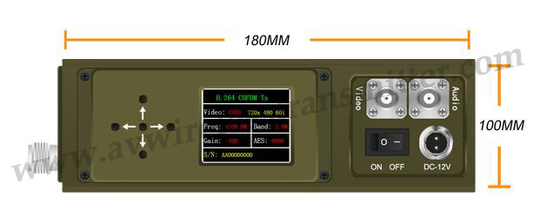

| Size | 180*100*60mm |
| Weight | 1444g(net weight) |
Rack-mounted type wireless receiver parameters:
Description:
KP-HDR50 is a rack-mounted high-definition H.265 / H.264 COFDM wireless video receiver, standard 1.5U rack designed. The wireless receiver support high quality broadcast standard 1920*1080P/i video output with both HDMI, and BNC interfaces. KP-HDR50 microwave receiver can be configured easily and manually, like frequency, rf bandwidth, encryption, at the LCD configred panel on receiver body.
KP-HDR50 wireless digital video receiver has the strong anti-jamming capacity, which overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time receiving with high quality image in NLOS(Non-Line-of Sight) or complicated working environment.
It's with HDMI and CVBS vido output and can be customized with RJ45 Ethernet port, support remote image monitoring. With flexible tailor made solution, the KP-HDR50 digital receiver is suitable for any cofdm video transmitter of our company.
Feature:
1) COFDM HD/SDI 1080P receiver; Matched with HD/SDI 1080P transmitter
2) Supported multi-socket output;
3) Rack design,easy to installed in Car;
4) Transmit video and audio signal simultaneously;
5) Can customized with RS485/RS232 data control together;
6) Support NLOS video transmission receiving;
7) Work well under fast moving signal receiving and support NLOS trasnsmission
8) Latest technology: COFDM modulation
Specifications:
| Voltage | AC220V±20V, DC14V~DC16V |
| Current | ≤1.A / DC12.5V |
| Receiving sensitivity | ≤-102dBm /4MHz, |
| ≤-95dBm /8MHz | |
| BER | BER≤1×10-4 |
| Frequency input range | 300MHz~4400MHz (Optional) |
| Output interface | N(type),Dual antenna diversity reception technology |
| RF bandwidth | 2/2.5/4/8MHz(adjustable) |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Carrier | 2K |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Video formats and amplitude | PAL/NTSC, 1Vp-p/75Ω |
| Video compression | H.264/MPEG-4 |
| Video output interface | HDM-I; CVBS |
| Video channel characteristic |
Differential gain DG≤1.5% Differential phase DP≤1° |
| System distortion degree | |
| Decryption mode | AES 128/256 bit user-defined password |
| Audio output | Left and right channel and stereo |
| Dimension | 480*220*44mm |
| Weight | 1.5kg |
| Type | mobile cofdm hd video transmitter and receiver long range |
