Product Details:
|
| Modulation: | COFDM | RF Power: | 20 Watt |
|---|---|---|---|
| Encryption: | AES 128 Bits | Video Coding: | H.265 |
| Video Output: | HDMI/SDI; CVBS | Dimension: | 220*140*66mm |
| High Light: | AES COFDM Video Transmitter,HD COFDM Video Transmitter,20Watt COFDM Wireless Transmitter |
||

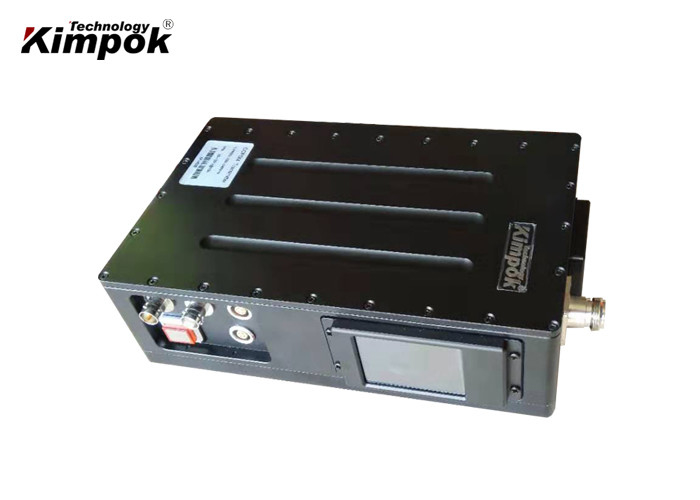

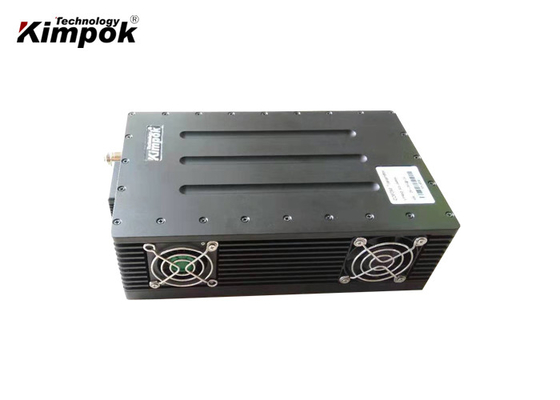

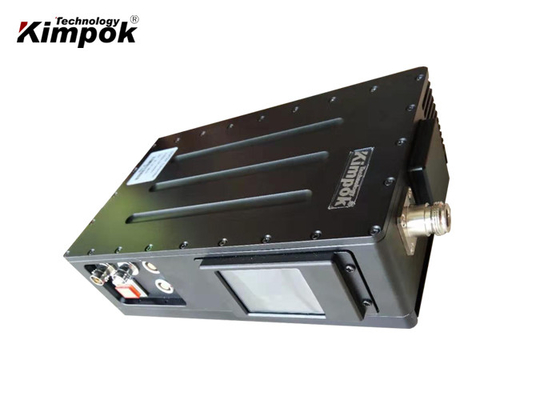

AES Encryption HD COFDM Video Transmitter 20 Watt Wireless Video Data Transmitter
Long range COFDM video transmitter introduction:
KP-HDT20W Wireless HDMI HD-SDI Video Transmitter, is is a powerful HD transmission system, using the core of mobile communication technology COFDM(multi-carrier modulation technique), which can transmit good quality and stable full-HD digital video signal under the condition of high speed moving and heavy building blocks in city environment. The HD1080P wireless video transmitter supports stereo balance audio input and narrow-band transmission system.
Features:
Specifications:
| Modulation | CODFM |
| DC input | DC12V-DC14V |
| Working Current | ≤4.7A@DC12V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Carrier | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Frequency | 138-4400MHz (available) |
| RF power output | 5-20W (adjustable) |
| A/V interface | HD-SDI / HDMI; CVBS |
| RF interface | N type |
| Flatness | ≤2dB(within full frequency range), ≤0.5dB(within 8MHz) |
| Video Harmonic | 1Vp-p @ 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | MPEG-4/H.264/H.265 |
| Resolution | 1980*1080P; 1280*720P |
| Video Rate | 6Mbps |
| Work environment | -30~70° |
| Dimension | 220*140*66mm |
| Weight | 2.5kg |
FULL HD COFDM Video Transmitter Application:
This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
Kimpok Technology is specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok Technology offers superior solutions that enable our customers to do their jobs even more effectively.
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. 5 engineers provide professional system design and construction;
6. Good prices and Military grade quality with 18 years experience in COFDM field.
