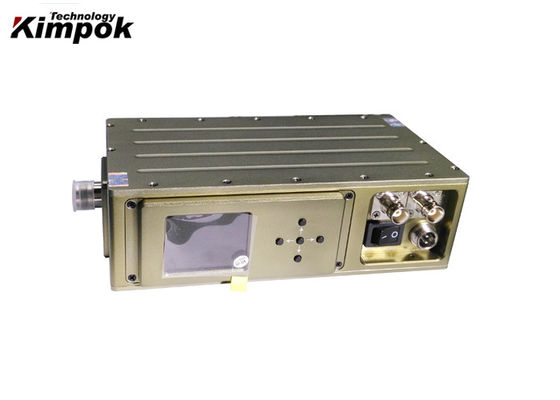

300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting

300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting
300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting 300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting

Large Image :  300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology
Certification: CE/FCC/ROHS
Model Number: KP-TS5000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiaiton
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 2,000pcs per month
Contact Now

300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting

Description
Modulation: COFDM Frequency: 300-800MHz(option), 12G/2.4G/5.8GHz(customized)
RF Output Power: 2-5Watt (adjustable) Voltage: DC 12V
Bandwidth: 1.25/2.5/6/7/8MHz(optional) NLOS Distance: 1-3km
Size: 140*85*50mm Weight: 800g (net Weight)
Highlight:

300Mhz COFDM Audio Video Transmitter

,

Broadcasting COFDM Audio Video Transmitter

,

900Mhz Audio Video Transmitter

300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting



Introduction:



This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture in resolution 1920*1080P, short latency.



This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.


Features:



  1.  2-5Watt RF power adjustable;
  2.  Built-in with battery 2300mA ;
  3.  More intuitive and natural with a coulobmeter;
  4.  Popular with users, and was applied to any AV projects.



Tech Specification:



Transmitter parameters:



 Frequency 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
 RF output Power 2-5Watt(adjustable)
 Voltage DC12V
 Modulation COFDM
 Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
 Bandwidth 1.25/2.5/6/7/8MHz(optional)
 Transfer rate 2/4/6/8Mbps(optional)
 FEC 1/2,2/3,3/4,5/6,7/8(optional)
 Guard Interval 1/32,1/16,1/8,1/4 (optional)
 Video Input 1 line PAL/NTSC analog video
 Audio Input Analog stereo left and right channels
 Video Compression H.264
 Data encryption AES 265 bit / ALLTECH Basic scrambling
 Flatness

 ≤2dB(within full frequency range) ,

 ≤0.5dB (within 8MHz)
 Carrier  2K,8K
 Video Signal  1Vp-p@75Ω,NTSC/PAL adaptive
 Resolution  720×576(PAL) , 720×480(NTSC)
 RF Interface  N(F)
 Video Format  PAL/NTSC(self-adaption)
 AV Interface  BNC
 Case Material  Aluminum alloy, waterproof
 Built-in battery  2300mA, 3Hrs
 Work environment  -30~70°
 Distance  1-3km NLOS; 100km LOS from air to ground
 Size  180*100*60mm
 Weight  1444g(net weight)



Receiver parameters:



Frequency  300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
Memory  60G, 1way 48hours recording
LCD monitor  7inch or 9.5 inch
Receive sensitivity  < -105dBm
RF Interface N(F)
Modulation  COFDM
Power supply AC220V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval  1/32,1/16,1/8,1/4 (optional)
Video Output  1 line PAL/NTSC analog video
Revolution  720×576(PAL) , 720×480(NTSC)
Lines of horizontal  625 or 525 Line
Audio Output  Analog stereo left and right channels
Data encryption  AES 265 bit / ALLTECH Basic scrambling
Voltage  AC220V±20V, DC14V~DC16V
Work environment -30~70°
Size  370*490*220mm
Weiht 18kg



300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting 0





300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting 1



Installation Diagram:



300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting 2



300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting 3
