Product Details:
|
| Frequency: | 300mhz-5.8Ghz Option | Distance: | 20~30km NLOS |
|---|---|---|---|
| Bandwidth: | 2/2.5/4/8MHz Adjustable | RF Power Output: | 30W/50W/80W/100W (option) |
| Interface: | HDM-I; SDI; BNC | Dimension: | 490*450*90mm |
| High Light: | Vehicle COFDM Video Transmitter,High Power COFDM Video Transmitter,Desert COFDM Wireless Transmitter |
||

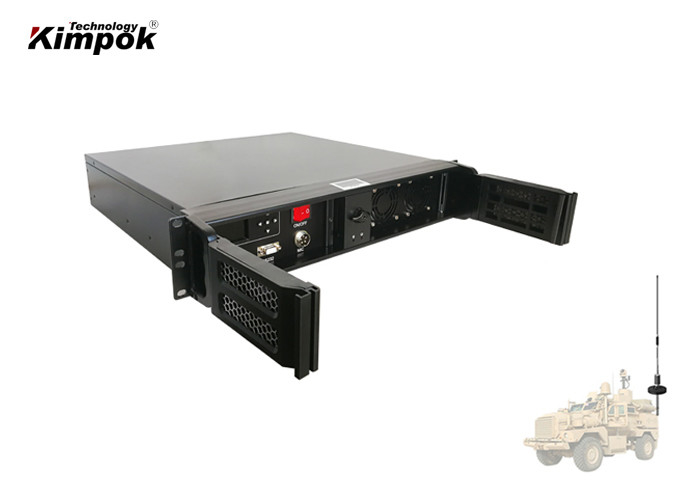

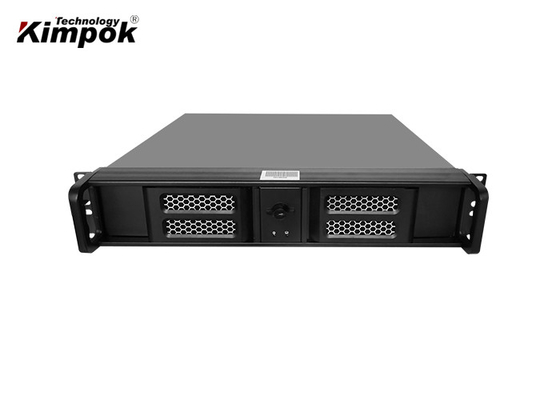

High Power Vehicle COFDM Video Transmitter Wireless Sender for Desert Transmission
Introduction of long range COFDM video transmitter:
The KP-CM60H is a powerful COFDM digital video data transmitter from Kimpok. With latest COFDM modulation, narrow-band, and H.264 encoder technology as its code, the KP-CM60H COFDM HD video voice digital transmitter sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments.
The high power and high definition make the KP-CM60H COFDM video transmitter ideal for large UAV super long range video communication and mobile vehicle to vehicle, or mobile vehicle to command center building wireless video communication applications, enabling true long range HD video data transmission.
Special features:
* 1080P high quality video images transmission
* strong safety with AES user-defined passwords
* 60 Watts high power and low latency
* support NLOS and fast moving environments but still in stable signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission
Transmitter configuration panel:
Specification:
| Voltage | DC28V |
| Bandwidth | 2/2.5/4/8MHz |
| Frequency video | 550MHz-600MHz stepped in 1MHz; other Frequency can be customized |
| Frequency data | 433MHz |
| Modulation | COFDM 2K |
| RF power | 60 watt |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Video port | BNC and SDI or HDMI |
| Data port | RS232/485 |
| Video resolution | 1080P/i & 720P/i |
| Video coding | H.264 |
| Video format | PAL/NTSC |
| Encryption | AES128/256bits |
| Dimension | 490*450*90mm |
| Weight | 16kg |
| Parameter setting | user manually setting via LCD display |
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you. Contact us! We can customize any solution to fit your requirements.
