1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level

1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level
1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level 1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level

Large Image :  1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology
Certification: CE/FCC/ROHS
Model Number: KP-HDT1W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 3,000pcs per month

1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level

Description
Frequency: 300MHz-900MHz Transmit Power: 100-1000mW
Modulation: COFDM Bandwidth: 2/2.5/4/8MHz(adjustable)
AV Interface: HDMI, CVBS Dimension: 100*60*16mm
Highlight:

1km COFDM Wireless Video Transmitter

,

COFDM Wireless Video Transmitter

,

5km Portable Wireless Video Transmitter

1~5km Portable COFDM Wireless Video Transmitter with Military Grade Level



Description:



KP-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use. It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDS1000A transmitter is in full hd resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.



The increased compression and efficiency of the H.264 encoder offers users additional range with the added benefit of small size,low latency and low power consumption. In particular, COFDM provides robust,secure and reliable video transmission over long ranges. And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.



Features:



* Small size, lighter and low power consumption

* Full hd video resolution,H.264 compression

* COFDM modulation

* inbuilt with HDMI and data serial port

* Heat dissipation with aluminum case;

* Great security by AES user defined encryption

* Ideal for UAV/UGV and hidden mission use

* Low delay time;



Transmitter Specification:



Voltage DC12V
Power supply DC12V/600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;

Data serial port RS485RS232/TTL ,one-way communication
Frequency 300-1500MHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1Watt(30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.264/MPEG-4
Resolution 720P ,1080i/1080P@60fps
Parameter control method User can Set up the related parameters by the control buttons
Built-in small LCD display parameters,but will be shut up in 3 seconds after on.
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃~75℃
Dimension 100*60*16mm
Weight 133g(without battery)

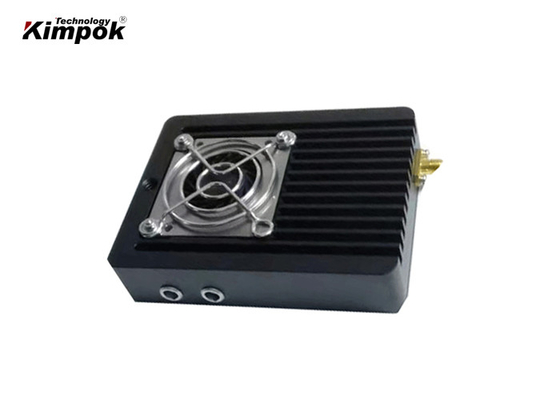

1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level 0

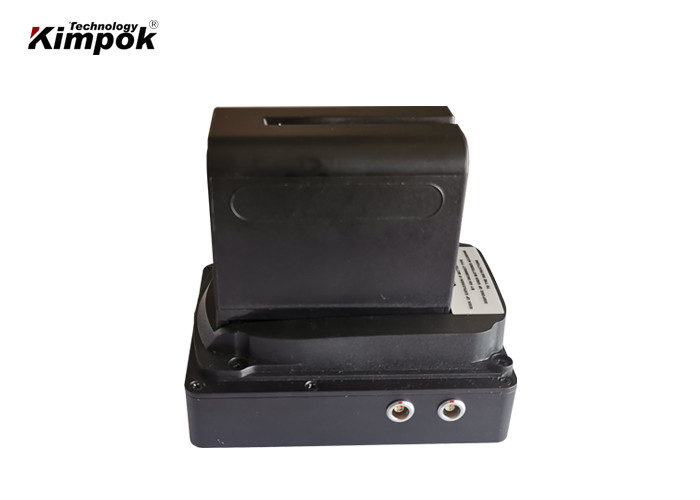

1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level 1



Receiver specificatations:



Frequency 300-900MHz(option)
Bandwidth 2/2.5/4/8MHz (adustable)
RF Level Input -92dBm~-20dBm / -105dBm~-20dBm
RF Impedance 50Ω
RF Interface N female
Modulation COFDM
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K,8K
Video Decoding ISO/IEC13818-2 MPEG-2MP@ML
Aspect Ratio 4:3, 16:9
Resolution 1080P; 720P
Audio Output Analog stereo left and right channels
Lines of horizontal 625 or 525 Line
Decryption AES256 bit / ALLTECH Basic scrambling
Working Voltage AC220V / DC12V
Temperature -30~70°
Dimension 430*310*65mm (1U Aluminium alloy box)
Weight 1.5 kg



Receiver picture:



1-5km Portable COFDM Wireless Video Transmitter With Military Grade Level 2





Typical application:



UAV shooting, Police/military secret application

Tactical system, hidden mission

UGV, Surveillance & public safety
