Product Details:
|
| Modulation: | COFDM | Video Resolution: | 1080i,1080P,720P |
|---|---|---|---|
| Video Output: | HDMI/SDI; CVBS | Video Coding: | H.264 |
| Encryption: | AES 128/256 Bits | Dimension: | 220*150*80mm |
| High Light: | Mobile Vehicle COFDM Video Transmitter,Rugged COFDM Video Transmitter,Wireless AV Sender 20W |
||

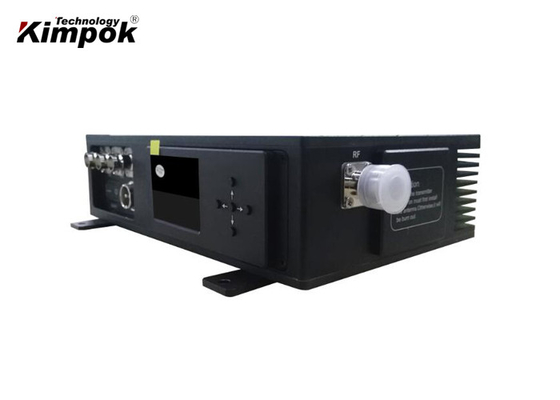

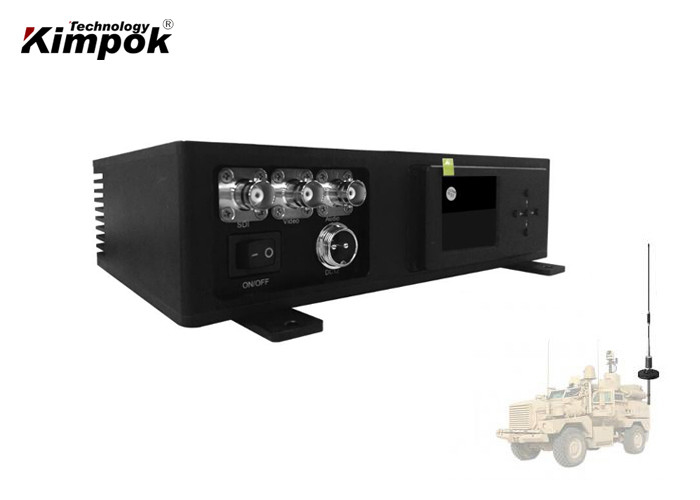

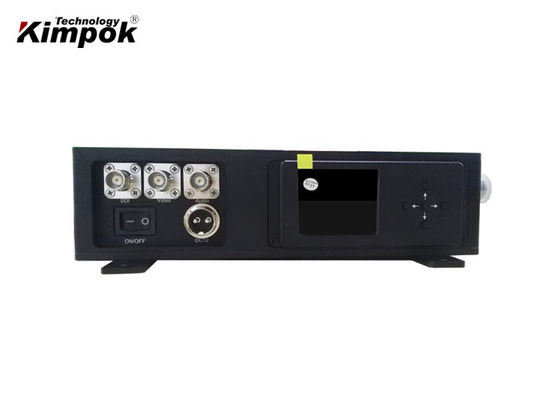

Rugged Mobile Vehicle COFDM Video Transmitter 10-15km Long Range HD Wireless AV Sender 20W
Long range video transmitter introduction:

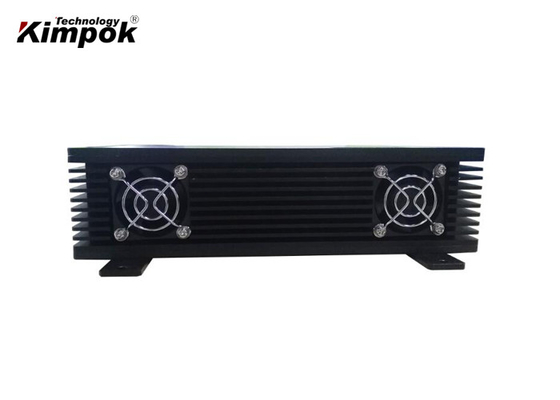

KP-HD20 is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with two cooling fans. Be safety with AES128/256bits. Work well in fast-moving transmission.
Features:
Specifications:
| Modulation | CODFM |
| DC input | DC12V-DC14V |
| Working Current | ≤4.7A@DC12V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Carrier | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Frequency | 138-4400MHz (available) |
| RF power output | 5-20W |
| A/V interface | HD-SDI; BNC |
| RF interface | N type |
| Flatness | ≤2dB(within full frequency range), ≤0.5dB(within 8MHz) |
| Video Harmonic | 1Vp-p @ 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | MPEG-4/H.264 |
| Resolution | 1980*1080 |
| Video Rate | 6Mbps |
| Casing Protection | IP66 (dustproof, rainproof) |
| Work environment | -30~70° |
| Dimension | 220*150*80mm |
| Weight | 2.3kg |
FULL HD COFDM Video Transmitter Application:
This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
Kimpok Technology is specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok Technology offers superior solutions that enable our customers to do their jobs even more effectively.
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. 5 engineers provide professional system design and construction;
6. Good prices and Military grade quality with 18 years experience in COFDM field.
