Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot

Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot
Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot

Large Image :  Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE/FCC/ROHS
Model Number: KP-HDT2W-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 0.1
Packaging Details: Export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 3,000 pieces per month
Contact Now

Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot

Description
Video Compression: H.264/MPEG-4/MPEG-2 AV Output: HD-MI; CVBS
RF Bandwidth: 8Mhz Working Frequency: 300MHz~999MHz(optional)
Modulation: COFDM Weight: 485g
Highlight:

drone video transmitter

,

uav video transmitter

,

Narrowband RF COFDM Wireless Transmitter

Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot



KP-HDT2W is a new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.264 encoding format and HD-MI/CVBS two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.



Features:



  • COFDM modulation;
  • Low delay,lightweight,live broadcast;
  • Support Full- HD quality image;
  • Support 1080i/1080P HD transission;
  • Built-in with HD-MI or CVBS interface;
  • Support composite standard video and balanced audio input;
  • All parameters can be adjusted by user;
  • 40-50km LOS distance(on air)



Specification:


Power section
DC Input DC11V~DC16V
Working Current ≤1.1A@DC12.5V
Transmitter section:
Frequency range Output 250MHz~4400MHz, can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1~2W(adjustable)
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
AV Interface HD-MI/SDI(have to choose one)
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HD-MI(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Versions HD 1.3
HDCP protocol Yes
Encoding support
AV rate 64, 96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance

40-50km LOS distance (on air)

1km NLOS distance (Ground to ground)
Appearance characteristics
Dimension 167*90*25mm
Weight 420g

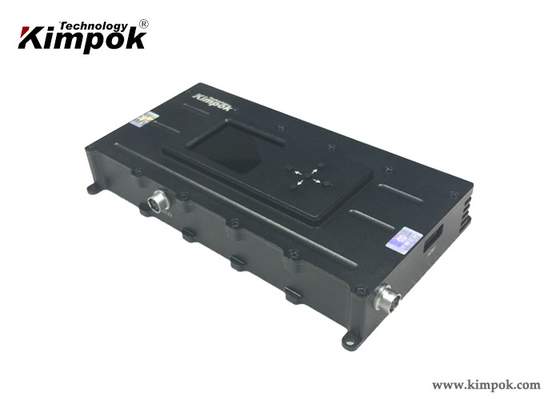

 Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot 0

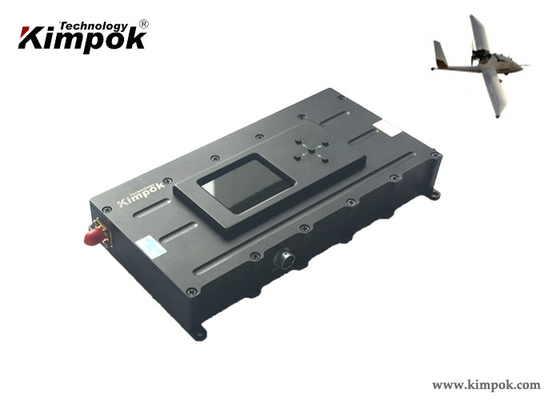

Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot 1

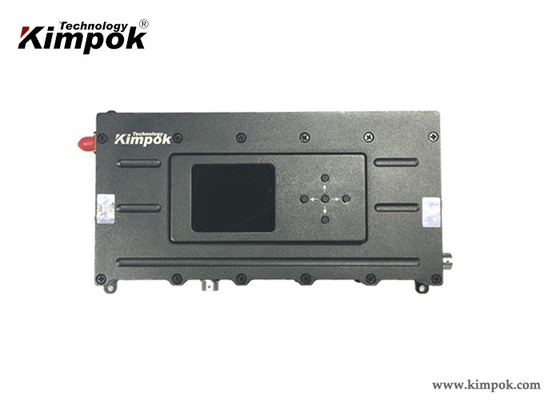

Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot 2

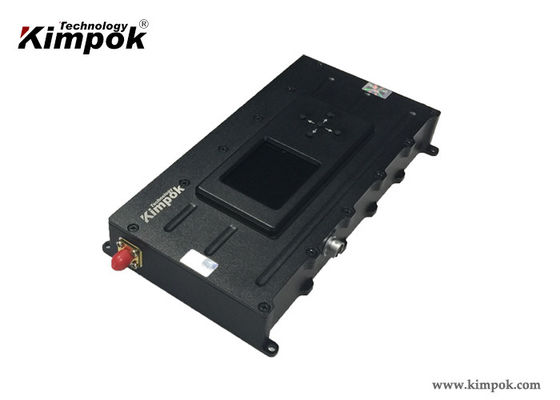

Narrowband RF Power Full HD COFDM Wireless Transmitter Video For Drone / USV / Robot 3
