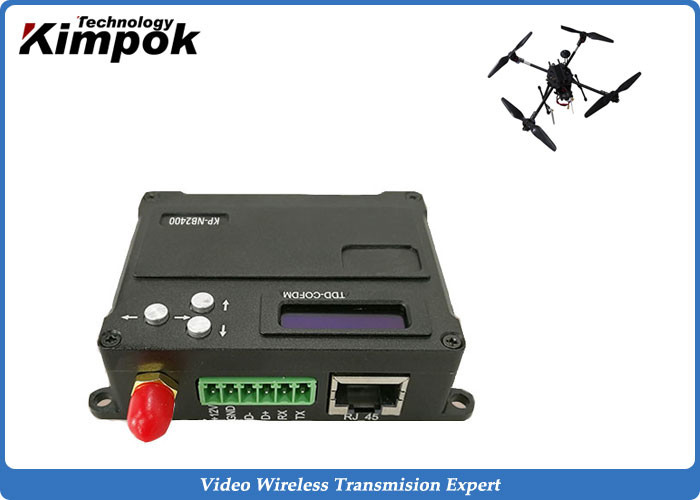

Ethernet audio video sender receiver wireless COFDM DC7V-17V

Ethernet audio video sender receiver wireless COFDM DC7V-17V
Ethernet audio video sender receiver wireless COFDM DC7V-17V

Large Image :  Ethernet audio video sender receiver wireless COFDM DC7V-17V

Product Details:
Place of Origin: China
Brand Name: Kimpok
Model Number: KP-NB2400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T

Ethernet audio video sender receiver wireless COFDM DC7V-17V

Description
Bandwidth: 4MHz/8MHz (adjustable) Interface: RJ-45 Ethernet ,RS232/RS485/RS422
Resolution: Support 720P And 1080P@50/60hz, 30 Frames Encryption Mode: 128bit AES(or 256bit AES)
Modulation: TDD_COFDM Dimension: 75*51*22mm
Highlight:

DC7V Audio Video Sender

,

DC17V Audio Video Sender

,

Ethernet Video Sender Receiver



COFDM Data Link Encryted Wireless Digital Transceiver for UAV / Drone / Quadcopter




Main Feature


1) Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology;

2) Smart settings, simple operation, easy to use;
3) Support transparent PTMP network technology;
4) Safety with AES 128 bit, can set user’s password;
5) Support non line of sight ( NLOS ) high-speed mobile transmission;
6) Provide standard RS-232&RS-485 + RJ45 ethernet;
7) Transmit/receive video audio, data and other multimedia signals simultaneously;
8) Support high standards of Industrial and military level applications;
9) The small volume, light weight, easy to carry, the radiating aluminum casing;
10) High clear OLED digital display, the interface simple and easy operation.





Product Parameters

Power supply
DC7V~17V, 6W consumption
Ethernet
10/100BaseT,Auto-MDI/X,IEEE802.3
TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Output frequency
2405~2470MHz(adjustable)
Output rf power
100-1000mW(30dBm) (adjustable)
Bandwidth
4MHz/8MHz (adjustable)
Interface
RJ-45 ethernet ,RS232/RS485/RS422
Reolution
Support 720P and 1080P@50/60hz, 30 frames



Encryption mode
128bit AES(or 256bit AES)
Error correction mechanism
32bit of CRC,ARQ
Modulation
TDD_COFDM
Parameter control
Through OLED control panel to modify parameters
Working temperature
-40℃~85℃
Dimension
75*51*22mm
Weight
135g





Product Application



It has advantange of small volume and light weight,especially widely used in UAV/ drones /Quadcopter/Octocopter/hexacopter, WIFIBOT Network building and etc.. such fast-moving complex environment video data signals transmission.



Ethernet audio video sender receiver wireless COFDM DC7V-17V 0





Testing:



Ethernet audio video sender receiver wireless COFDM DC7V-17V 1
