Product Details:
|
| Frequency:: | 2405~2470MHz(adjustable) | Transfer Rate:: | Can Up To 6.5Mbps |
|---|---|---|---|
| Data Encryption:: | 128bit AES(or 256bit AES) | Reolution:: | Support 720P And 1080P@50/60hz, 30 Frames |
| Output Rf Power:: | 100-1000mW(30dBm) (adjustable) | Modulation:: | TDD_COFDM |
| High Light: | HD COFDM IP Transmitter,RJ45 COFDM IP Transmitter,RS232 Data Link Transmitter |
||

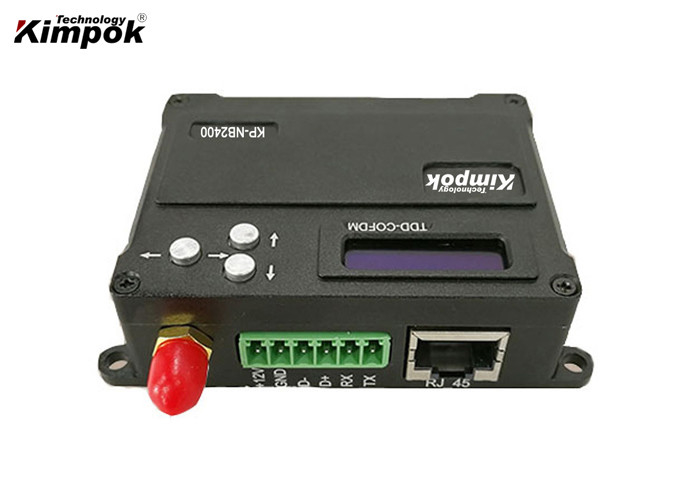

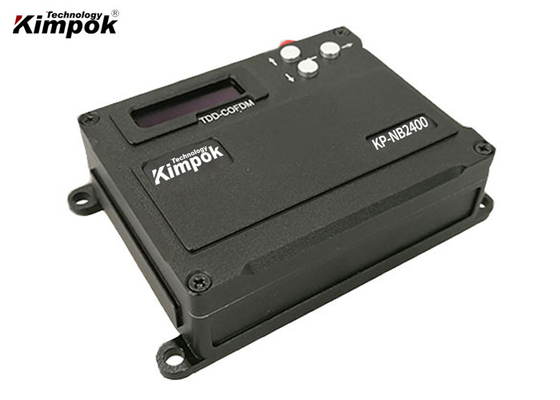

Full HD COFDM IP Transmitter Wireless Microwave Data Link RJ45 And RS232
Main Feature:
1) Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology;
2) Smart settings, simple operation, easy to use;
3) Support transparent PTMP network technology;
4) Safety with AES 128 bit, can set user’s password;
5) Support non line of sight ( NLOS ) high-speed mobile transmission;
6) Provide standard RS-232&RS-485 + RJ45 ethernet;
7) Transmit/receive video audio, data and other multimedia signals simultaneously;
8) Support high standards of Industrial and military level applications;
9) The small volume, light weight, easy to carry, the radiating aluminum casing;
10) High clear OLED digital display, the interface simple and easy operation.
|
Power supply
|
DC7V～17V, 6W consumption
|
|
Ethernet
|
10/100BaseT,Auto-MDI/X,IEEE802.3
|
|
TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
|
|
|
Output frequency
|
2405～2470MHz(adjustable)
|
|
Output rf power
|
100-1000mW(30dBm) (adjustable)
|
|
Bandwidth
|
4MHz/8MHz (adjustable)
|
|
Interface
|
RJ-45 ethernet ,RS232/RS485/RS422
|
|
Reolution
|
Support 720P and 1080P@50/60hz, 30 frames
|
|
Encryption mode
|
128bit AES(or 256bit AES)
|
|
Error correction mechanism
|
32bit of CRC,ARQ
|
|
Modulation
|
TDD_COFDM
|
|
Parameter control
|
Through OLED control panel to modify parameters
|
|
Working temperature
|
-40℃～85℃
|
|
Dimension
|
75*51*22mm
|
|
Weight
|
135g
|
It has advantange of small volume and light weight,especially widely used in UAV/ drones /Quadcopter/Octocopter/hexacopter, WIFIBOT Network building and etc.. such fast-moving complex environment video data signals transmission.
