Product Details:
|
| Power Supply: | DC7V-17V | Video In/out: | HD, RJ45 Ethernet, Support 1080P,720P,576,480 |
|---|---|---|---|
| Working Bandwidth: | 4MHz/8MHz | Data In/out: | Standard RS232/RS485/RS422 |
| Encryption: | 128 Bit AES | Modulation: | TDD-COFDM,time Division Duplex Mode |
| Highlight: | 2.4Ghz COFDM IP Transmitter,Ethernet COFDM IP Transmitter,8Mhz COFDM Wireless Transmitter |
||
Full HD 2.4Ghz Ethernet Video Sender RJ45 NLOS Network Video Transmitter 8Mhz Bandwidth
Introduce:

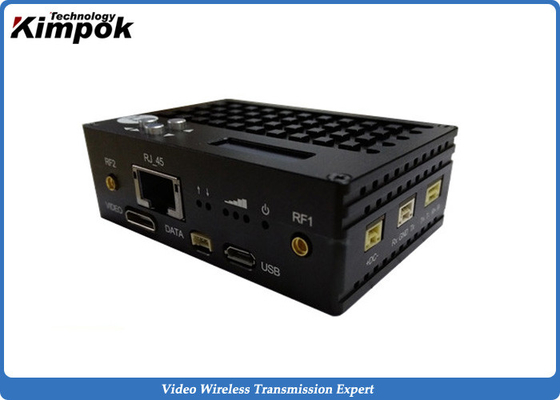

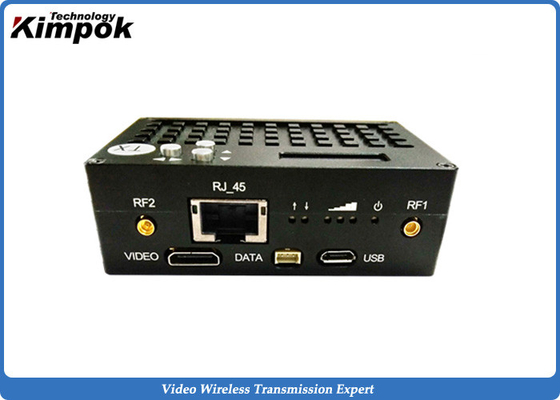

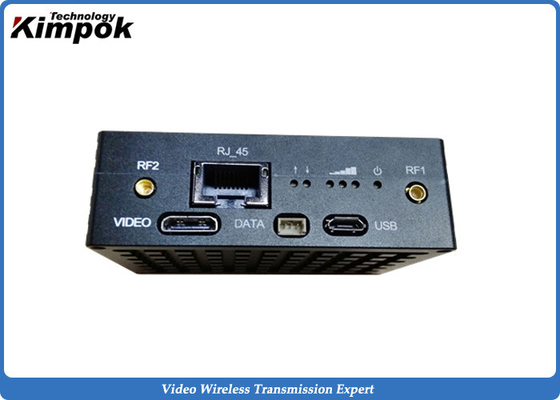

KP-TDD10 H.264 TDD-COFDM transceiver is our latest Zero delay 1080P HD wireless communication system with advanced time-division multiplexing technology and COFDM modulation combined.It provides perfect bi-directional data transmission channels(AES 128bits encryption) and ultra-low latency (around 10ms) high-definition video transmission channel from end to end transmission. Good for achieving real-time, multi-path, high-speed mobile data, audio and video signals transmission.
Main feature:

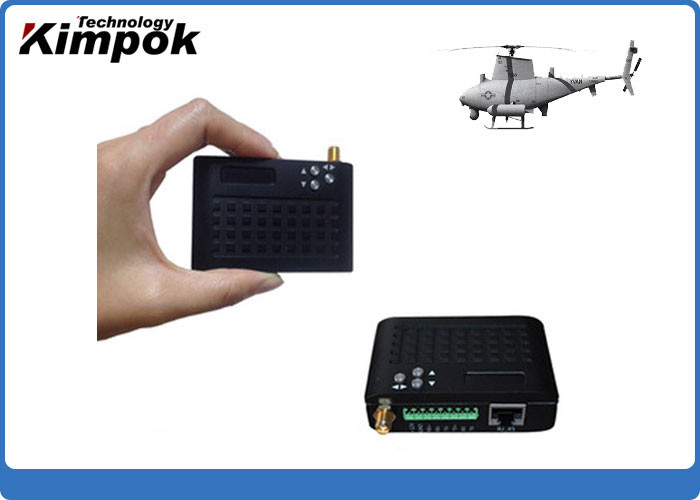

As its super small volume, light weight especially suitable for application in UAV, High-speed Rail, train and other complex environments.
Zero Delay TDD COFDM Transmitter Specification:
| Power Supply | DC7V-17V |
| Consumption 9W | |
| Video in/out | HD, RJ45 Ethernet, support 1080P,720P,576,480 |
| Note: HD for transmitting end, RJ45 for receiving end | |
| Data in/out | Standard RS232/RS485/RS422 |
| Frequency Output | 2405MHz-2470MHz, step in 1MHz (other frequencies can be customized) |
| RF power output | 20dBm-30dBm (100mW-1000mW) (adjustable) |
| Working bandwidth | 4MHz/8MHz |
| Encryption | 128 bit AES, and user-defined password |
| Error correction mechanism | 32 bit of CRC,ARQ |
| Modulation | TDD-COFDM,time division duplex mode |
| Parameter Control | adjustable parameters through the OLED panel |
| Working temperature | -20℃-75℃ |
| Dimension | 85mm*28mm*51mm |
| Weight | 151g |
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
