Product Details:
|
| Frequency/data: | 300-3300MHz (subdivision) | Frequency/video: | 300-3300MHz (subdivision) |
|---|---|---|---|
| Modulation: | FDD-COFDM 2K | RF Power: | 2W-3W |
| RF Bandwidth: | 1/2/4/8MHz | Weight: | 500g |
| High Light: | 3W Mini Cofdm Transmitter,2W Mini Cofdm Transmitter,10M Wireless Audio Video Sender |
||
Light weight Mini Ethernet Radio 2-3W IP video and data Transceiver 10M Bandwidth
Description:

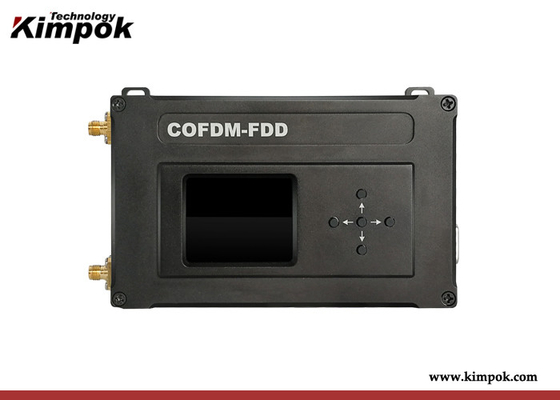

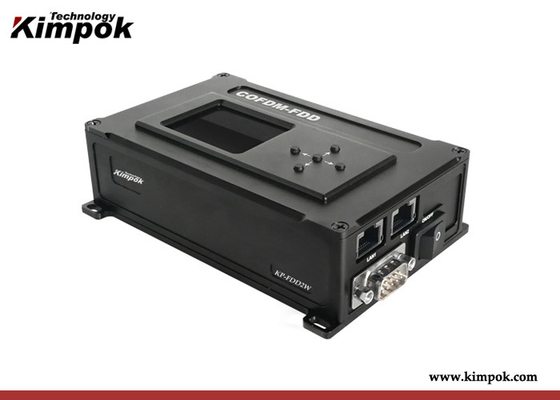

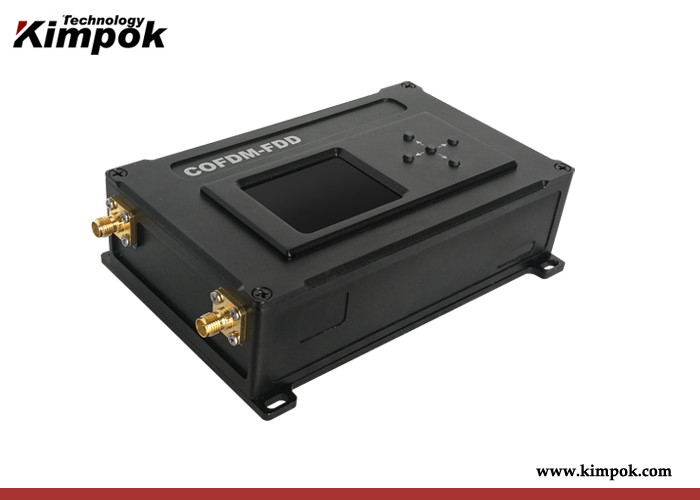

KP-FDD2W model is a lightweight COFDM modulation Network IP radios with 2W RF power output.
FDD is a new type of full duplx communication technology used in mobile communication systems, uses two separate channels for uplink and downlink transmission. As its lightweight and small size that meets various drones and robotic required for robust long range video and data control over IP camcorder or Computer connection.
Feature:
Specifications:
| Power supply | DC12V/1.5A |
| TX output frequency | 555MHz (can be customized 300-3300MHz),step in 1MHz |
| RX output frequency | 595MHz (can be customized 300-3300MHz),step in 1MHz |
| RF bandwidth | 1/2/4/8/10Mhz |
| RF power output | 33dBm / 2W |
| Encryption/decryption mode | AES128 bits(user-defined password) |
| Modulation | COFDM 2K |
| Transfer rate | 2x30 Mbit/s uplink and downlink |
| RF connector | SMA type *2 |
| Ethernet | Standard RJ45 port *2 |
| Serial port | RS232 serial port |
| Baud rate | 115200bps maximum |
| Two way audio | Aviation plug |
| LCD panel with keypad | Easy to set the related parameters |
| Dimension | 131x92x39mm |
| Weight | 527g |
| Transmit distance | up to 50km from Drones to ground station 2km NLOS for ground level communication |
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. 5 engineers provide professional system design and construction;
6.Good prices and Military grade quality with 17 years experience in COFDM field.
