Product Details:
|
| Product Name: | FDD IP Transceiver | Baud Rate: | 115200bps Maximum |
|---|---|---|---|
| Modulation: | FDD-COFDM 2K | RF Power: | 2W-3W |
| RF Bandwidth: | 1/2/4/8MHz | Weight: | 500g |
| High Light: | cofdm hd wireless transmitter,uav video link,2W COFDM HD Wireless Transmitter |
||
2W Two Way COFDM Transceiver Cofdm Hd Wireless Transmitter 115200bps FDD Technology
Description of Ethernet Video Link :

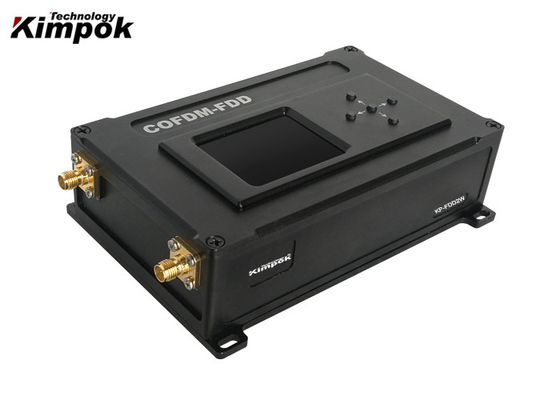

KP-FDD2W is a light weight COFDM modulation Network IP radios with 2W RF power output.
FDD is a new type of full duplx communication technology used in mobile communication systems, uses two separate channels for uplink and downlink transmission. As its lightweight and small size that meets various drones and robotic required for robust long range video and data control over IP camcorder or Computer connection.
Specifications:
| Power supply | DC12V/1.5A |
| TX output frequency | 555MHz (can be customized 300-3300MHz),step in 1MHz |
| RX output frequency |
595MHz (can be customized 300-3300MHz),step in 1MHz |
| RF bandwidth | 1/2/4/8/10Mhz |
| RF power output | 33dBm / 2W |
| Encryption/decryption mode | AES128 bits(user-defined password) |
| Modulation | COFDM 2K |
| Transfer rate | 2x30 Mbit/s uplink and downlink |
| RF connector | SMA type *2 |

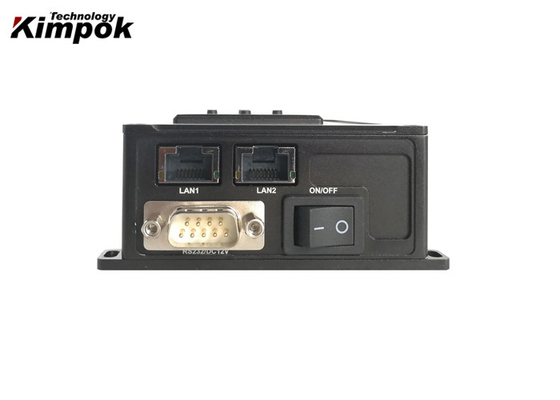

| Ethernet | Standard RJ45 port *2 |
| Serial port | RS232 serial port |
| Baud rate | 115200bps maximum |
| Two way audio | Aviation plug |

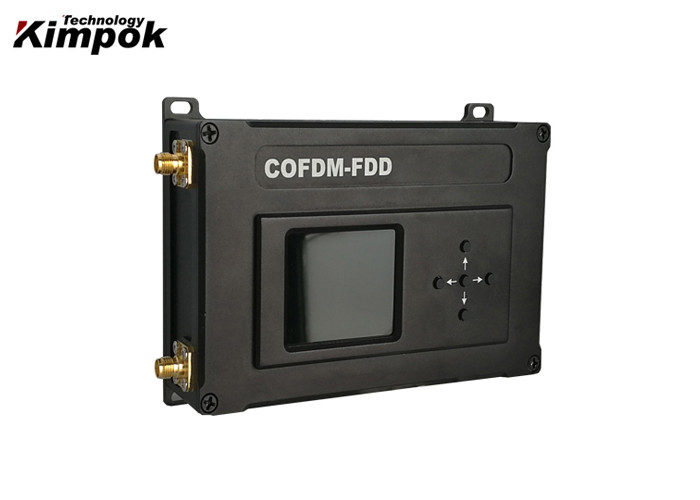

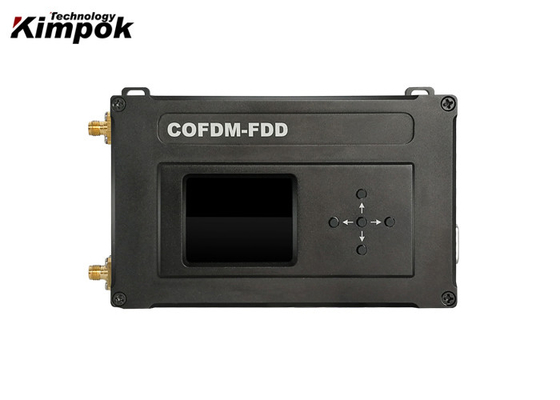

| LCD panel with keypad | Easy to set the related parameters |
| Dimension | 131x92x39mm |
| Weight | 527g |
| Transmit distance | up to 50km from Drones to ground station 2km NLOS for ground level communication |
Feature:
