Product Details:
|
| RF Output Power: | 5~20 Watt (adjustable) | Frequency: | 300-900MHz(option),12G/2.4G/5.8GHz(customized) |
|---|---|---|---|
| NLOS Distancent: | 30~50km LOS; 5~10km NLOS | Modulation: | COFDM |
| Casing Protection: | Casing Protection | Dimension: | 220*140*60mm |
| Highlight: | Wireless COFDM Video Transmitter,AV COFDM Video Transmitter,UHF Wireless AV Sender |
||
VHF COFDM Video Transmitter / Wireless AV Sender Mobile Stable Transmission
Special Feature:
Introduction:

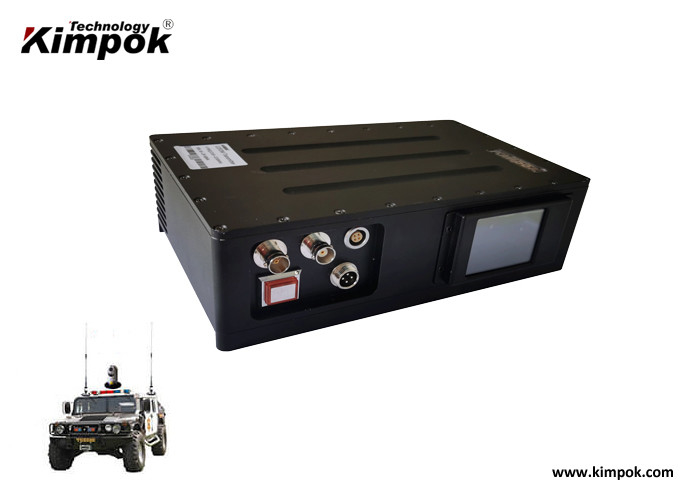

KP-HDT20W is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video.

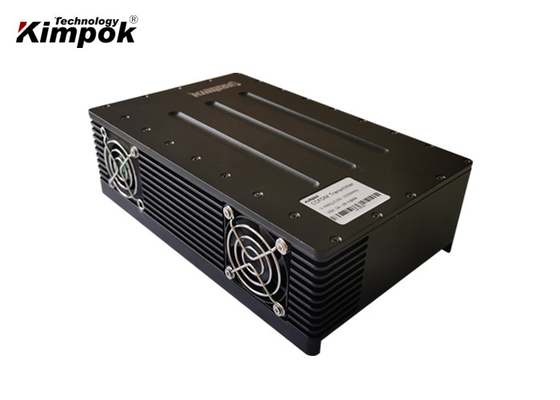

The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans.Be safety with AES128/256bits.Can work well in fast-moving transmission.
Features:
Specifications:
| Modulation | CODFM |
| DC input | DC12V-DC14V |
| Working Current | ≤4.7A@DC12V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Carrier | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Frequency | 138-4400MHz (available) |
| RF power output | 15W |
| A/V interface | RCA |
| RF interface | N type |
| Flatness | ≤2dB(within full frequency range), ≤0.5dB(within 8MHz) |
| Video Harmonic | 1Vp-p @ 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | MPEG-4/H.264 |
| Resolution | 1280*720 |
| Video Rate | 6Mbps |
| Casing Protection | IP66 (dustproof, rainproof) |
| Work environment | -30~70° |
| Dimension | 220*140*60MM |
| Weight | 2.3kg |
Application:
This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
1) Manpack--vehicle
2) Vehicle---fixed station
Kimpok is specialized in COFDM, TDD and Analog wireless video transmission products for over 10 years, including Wireless Video Transmitter, HD Video Wireless Transmitter and Receiver, quality UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
