Product Details:
|
| Product Name: | High Speed Radio Data | Voltage: | 12V DC |
|---|---|---|---|
| RF Power: | 5 Watt | Data Port: | RS232,RS485 |
| Frequency: | 433MHz (170MHz/230MHz Optional) | Sensitivity: | -123dBm@1200bps (1% BER) |
| High Light: | 115200bps Wireless Data Transceiver,LOS Wireless Data Transceiver,Telemetry Data Radio Transceiver |
||

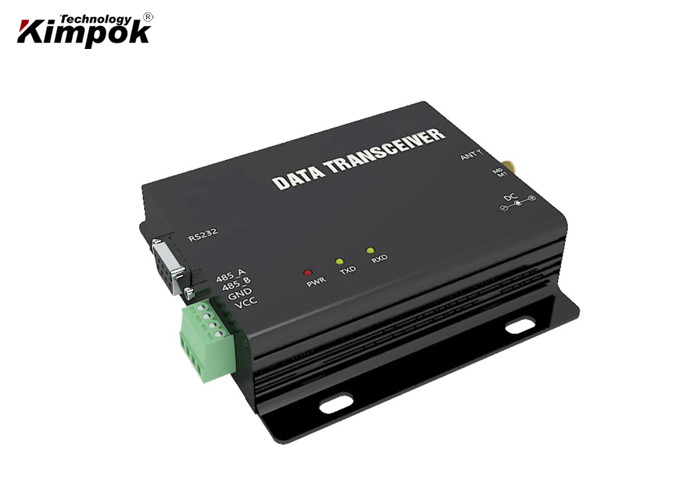

115200bps High Speed Radio Data Transceiver 150km LOS for Wireless Telemetry
Features:
KP-RME90 radio data transceiver, designed with high efficiency FEC technology, good performance IC and high speed MCU, is an excellent data transceiver. Its power output is 5W, transmission distance reaches 100-150km LOS from air to ground, 3-6km on ground. It has the advantage of long transmission distance, good sensibility, strong anti-interference ability. KP-RME90 adopts transparent transmission. Users don’t need any program knowledge.
Technical specification:
| PERFORMANCE | |
| Power Output: | 5W |
| RF Line-of-sight Range: | 15km@1200bps; 10km@9600bps |
| RF Effective Rate: | 1200/2400/4800/9600/19200/38400/57600/115200bps |
| Space Channel: | 1MHz(Default) |
| Bandwidth: | <25KHz |
| Receiver Sensitivity: | -123dBm@1200bps (1% BER) |
| NETWORKING | |
| Networking Topology: | Point-to-point, point-to-multipoint |
| COMPATIBILITY | |
| LS-U series, LS-RDIO series, LS-RAIO series, LS-R series | |
| POWER | |
| Supply Voltage: | 12V DC |
| Transmit Current: | <2.7A |
| Receive Current: | <80mA |
| GENERAL | |
| Communication Mode: | Half-duplex |
| Frequency Band: | 433MHz (170MHz/230MHz optional) |
| Channel: | 8(default),16/32/64(optional) |
| Interface: | RS485, RS232 or TTL choose one |
| PHYSICAL PROPERTIES | |
| Size: | 82*62*25mm (excluding antenna base and data pin) |
| Weight: | 130g |
| Antenna Base: | 50Ω, SMA |
| Operating Temperature: | Industrial:-40℃~+80℃(TCXO) |
Application:
* SCADA;
* Wireless alarm and security systems;
* Industrial automation, Access Control System;
* Wireless data transmission, automatic data collection system;
* Oil field monitoring, wireless DTU;
* PLC wireless communication;
* Industry automation, wireless telemetry and so on.
