Product Details:
|
| Product Name: | Wireless Ip Radio Data | LOS Range: | 15km@1200bps; 10km@9600bps |
|---|---|---|---|
| RF Power: | 5 Watt | Data Port: | RS232,RS485 |
| Frequency: | 170MHz~868MHz | Sensitivity: | -123dBm@1200bps (1% BER) |
| High Light: | 15km Wireless Data Transceiver,8CH Wireless Data Transceiver,LOS Data Radio Transceiver |
||
Point-to-multipoint Wireless Data Transceiver 15km LOS Radios 8CH Half-duplex
Features of Wireless IP Radio:

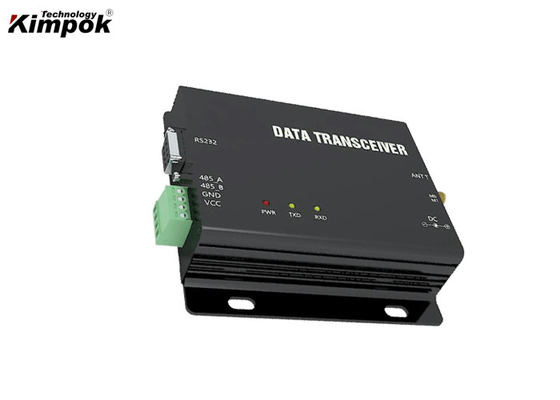

KP-RME90 radio data transceiver, designed with high efficiency FEC technology, good performance IC and high speed MCU, is an excellent data transceiver. Its power output is 5W, transmission distance reaches 100-150km LOS from air to ground, 3-6km on ground. It has the advantage of long transmission distance, good sensibility, strong anti-interference ability. KP-RME90 adopts transparent transmission. Users don’t need any program knowledge.
Technical specification:
| PERFORMANCE | |
| Power Output: | 5W |
| RF Line-of-sight Range: | 15km@1200bps; 10km@9600bps |
| RF Effective Rate: | 1200/2400/4800/9600/19200/38400/57600/115200bps |
| Space Channel: | 1MHz(Default) |
| Bandwidth: | <25KHz |
| Receiver Sensitivity: | -123dBm@1200bps (1% BER) |
| NETWORKING | |
| Networking Topology: | Point-to-point, point-to-multipoint |
| POWER | |
| Supply Voltage: | 12V DC |
| Transmit Current: | <2.7A |
| Receive Current: | <80mA |
| GENERAL | |
| Communication Mode: | Half-duplex |
| Frequency Band: | 433MHz (170MHz~868MHz optional) |
| Channel: | 8(default),16/32/64(optional) |
| Interface: | RS485, RS232 or TTL choose one |
| PHYSICAL PROPERTIES | |
| Size: | 82*62*25mm (excluding antenna base and data pin) |
| Weight: | 130g |
| Antenna Base: | 50Ω, SMA |
| Operating Temperature: | Industrial:-40℃~+80℃(TCXO) |
Application:
* SCADA;
* Wireless alarm and security systems;
* Industrial automation, Access Control System;
* Wireless data transmission, automatic data collection system;
* Oil field monitoring, wireless DTU;
* PLC wireless communication;
* Industry automation, wireless telemetry and so on.
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: Can I order 1 sample for test?
Yes, we welcome sample order, mixed samples are acceptable.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
