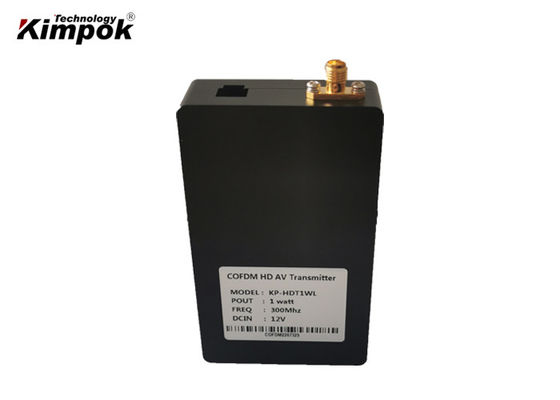

500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power

500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power
500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power 500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power

Large Image :  500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE
Model Number: KP-HDT1WL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$0
Packaging Details: International standard packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000pcs/month

500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power

Description
Product Name: Cofdm Wireless Video Transmitter RF Power: 1 Watt
Frequency: 300~900MHz (other Frequency Customized) Encryption: AES 128/256 Bits
Power: 12V DC Weight: 133g
Highlight:

12V DC COFDM Video Transmitter

,

500m COFDM Video Transmitter

,

NLOS COFDM Wireless Video Transmitter

500m NLOS Long Range HD COFDM Video Transmitter with 1 Watt Power​



Description of Digital wireless video sender:



KP-HDT1WL small video transmitter is a micro full HD COFDM video transmitter, specially designed for UAV, UGV and body-worn use. It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1WL transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for two-way data transmission.



The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular, COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.



Specification of portable transmitter:



Voltage DC12V
Power supply DC12V/600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;

Data serial port (option) RS485/RS232/TTL, two-way communication
Frequency 300~900MHz (optional); other frequencies customized
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1 Watt (30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.265/H.264/MPEG-4
Resolution 720P ,1080i/1080P@60fps
Parameter control method User can Set up the related parameters by the control buttons
Built-in small LCD display parameters,but will be shut up in 3 seconds after on.
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃~75℃
Dimension 100*60*16mm
Weight 133g



Features of lightweight digital video transmitter:



* COFDM modulation;

* Small size, lighter and low power consumption;

* Full HD video resolution, H.264/H.265 compression;

* inbuilt with HDM-I and two- way data serial port;

* Heat dissipation with aluminum case;

* Great security by AES user defined encryption;

* Ideal for UAV / UGV and hidden mission use;

* Low latency.





UAV video transmitter application:



500m NLOS Long Range HD COFDM Video Transmitter With 1 Watt Power 0



FAQ:



Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: Can I order 1 sample for test?

Yes, we welcome sample order, mixed samples are acceptable.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.





Our Service:

  • One-stop ODM/OEM solution;
  • 24-hour technical support;
  • Lifelong maintenance (Replacement parts will be charged after a year);
  • Provide professional system design and construction;
  • You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area for over 20 years, we are the source.
