Product Details:
|
| Product Name: | GPS UAV Video Transmitter | Encryption: | AES 128 Bit |
|---|---|---|---|
| Video Compression: | H.264/H.265 | Video Input: | HDM-I; SDI; CVBS |
| RF Power: | 60-100 Watt (adjustable) | Power: | 28V DC |
| Highlight: | 200km UAV Video Transmitter,100W UAV Video Transmitter,LOS COFDM Video Transmitter |
||

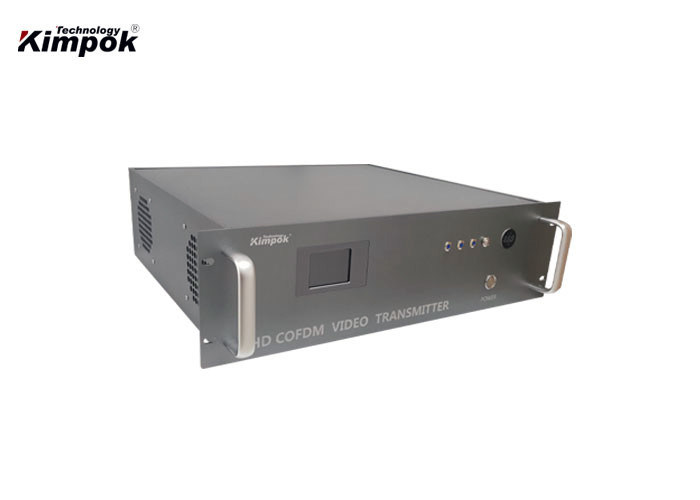

200km LOS COFDM HD UAV Video Transmitter with 100W GPS AES Encryption
Long Range UAV Video Transmitter Description:
The KP-CMTX100H is a powerful COFDM digital wireless video & data transmitter from Kimpok Technology. With the latest COFDM modulation, narrow-band, and H.264 encoder technology as its code, the KP-CMTX100H COFDM HD video audio digital transmitter sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments.
The high power and high definition makes the KP-CMTX100H COFDM video transmitter ideal for large UAV super long range video communication and mobile vehicle to vehicle, or mobile vehicle to command center building wireless video communication applications, enabling true long range HD video & data transmission.
Specification:
| Voltage | DC 28V |
| Bandwidth | 2/2.5/4/8MHz |
| Frequency video | 300MHz~900MHz, 1MHz increment; other Frequency can be customized |
| Frequency data (Option) | 433MHz or other band |
| Modulation | COFDM 2K |
| RF power | 60-100W (adjustable) |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Video port | HDM-I /HD-SDI / CVBS |
| Data port (Option) | RS232 / RS485 |
| Video resolution | 1080P/i & 720P/i |
| Video coding | H.264/H.265 |
| Video format | PAL/NTSC |
| Encryption | AES128/256bits |
| Dimension | 480*460*135mm |
| Weight | 8.1kg |
| Parameter setting | user manually setting via touch screen |
Special features:
* 1080P high quality video images transmission
* strong safety with AES user-defined passwords
* ultra low latency, 100ms end to end
* 100 Watts high power and low latency
* support NLOS and fast moving environments but still in stable signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
