Product Details:
|
| Product Name: | Remote Wireless Video Transmitter | Serial Port: | RS232/TTL |
|---|---|---|---|
| RF Power: | 1-5W (adjustable) | AV Input: | HDM-I/CVBS |
| Dimension: | 140*100*43mm | Power: | 600g |
| Highlight: | TTL COFDM Digital Video Transmitter,5W COFDM Digital Video Transmitter,Security COFDM Video Transmitter |
||

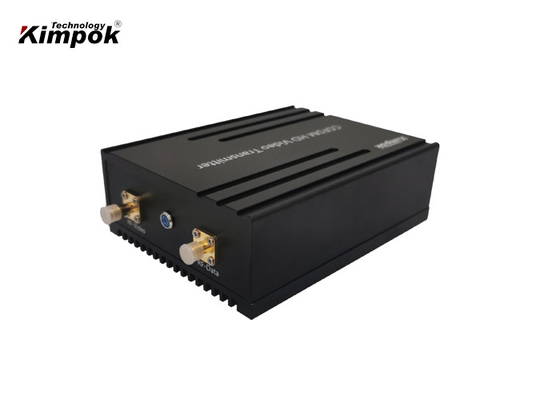

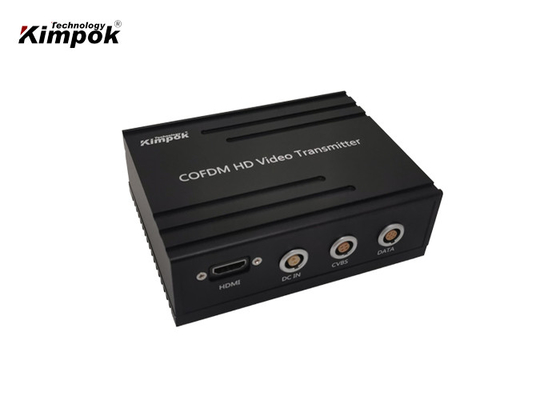

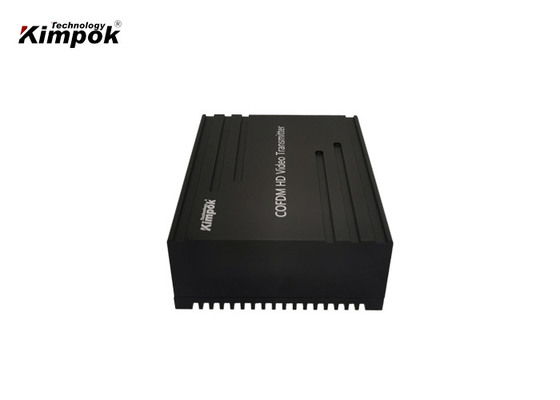

Remote COFDM Digital Video Transmitter with 5W RF Power for Security Purpose
Description:
KP-HD5000LW remote wireless transmitter use the lateste technology COFDM modulation (coded orthogonal frequency division multiplexing), it is an ultra-thin, ultra-small wireless communication device with high brightness and low power consumption. It can transmit high quality full 1080P HD video, audio and data even though there are some building blocks or high-speed mobile shooting. support AES 128/256 bit encryption and H.265/H.264 video compression, HD-MI or SDI and CVBS HD and SD video inputs.
KP-HDT2W widely used in UAV aviation filming, UGV/Robot, military, covert investigation, image monitor and real-time wireless video transmission and so on. With four holes at the bottom of the transmitter for fixed installation.
Parameters:
| MOdel number | KP-HD5000LW |
| Frequency | 300-900Mhz (option), or other band customized |
| Modulation | COFDM |
| Consumption | <40W |
| Encryption | AES 128 bits |
| Constellation | QPSK(4QAM),16QAM,64QAM |
| FEC | 1/2 2/3 3/4 5/6 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Carrier | 2K,8K |
| Bandwidth | 2/3/4/6/7/8MHz (option) |
| Video rate | 200kps~20000kps (adjustable) |
| RF power | 1~5 watt (adjustable) |
| Video input | HD-MII, CVBS, AHD, HD-SDI (option) |
| Video coding | H.265/H.264/MPEG-4 |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL |
| Transmission distance | 60~100km from UAV to ground station; 3km NLOS on ground |
| Working voltage | DC12V |
| Working Temperature | -20℃ -- +55℃ |
| Dimension | 140*100*43mm |
| Weight | 600g |
| Box colour | Black |
| Antenna port | N type |
Feature:
● COFDM modulation technology ensure the stability of signal;
● Support FULL HD video quality,1080i/P@30fps;
● Built-in with HD-MI or AHD ports;
● Provide AES128 encryption for video safety;
● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz;
● 1-5W rf power adjustable;
● Low delay time;
● Widely used in helicopter shooting, Live broadcast and etc…
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
