20km Long Range Digital Wireless Video Transmitter And Receiver With Low Latency

20km Long Range Digital Wireless Video Transmitter and Receiver with Low Latency

Real-time mbile wireless av transmitter Description:

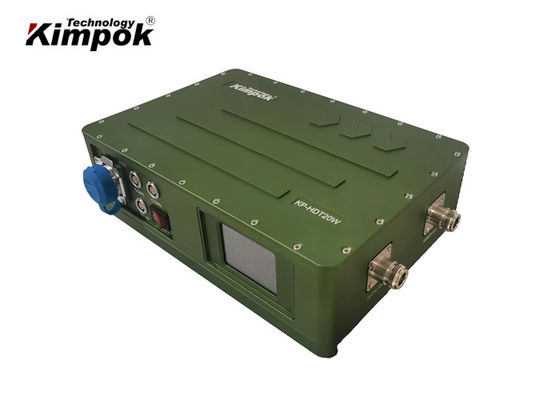

KP-HDT20WG is a powerful COFDM wireless video audio transmitter designed from Kimpok Technology, it's adopts the latest COFDM modulation and narrow bandwidth at its core, which is enable to transmit 1080P/I full HD video quality in fast moving and NLOS (non-line-of-sight) environment.

With 20 watt high RF power, KP-HDT20WG can easily to transmit 10~15km NLOS long distance wireless video and 1920*1080P high definition broadcast quality image in urban area; and 100km LOS from air to ground.

The frequency, RF power, video input, and the housing of the KP-HDT20WG cofdm video transmitter all can be designed and customized based on user's application and requirement.

Parameters:

Feature:

• COFDM modulation, Stable transmission

• H.265/H.264 video compression, DVD video quality

• Strong casing with built-in two cooling fans

• Mobile and NLOS video audio transmission

• Great security by encryption of AES 128/256 bits

• Low system latency

• Modular design, compact structure, OEM design

• Can be customized to add additional features, such as HDM-I/HD-SDI, data port, Ehernet and etc..

Connection:

Application:

The product is widely used in vehicle, racing, police patrol, maritime, ect. Transmitting full HD mobile video audio long range wireless communication.

About Kimpok Technology:

Kimpok technology found 1998, specialized in high quality of COFDM mobile video wireless communication, for application of Law enforcement and military, Public Security Bureaus, R/C helicopter, UAV, UGV, Automobiles, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, and so on.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

FAQ:

Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.

Our Service:

• One-stop ODM/OEM solution;
• 24-hour technical support;
• Lifelong maintenance (Replacement parts will be charged after a year);
• Provide professional system design and construction;
• You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
