Product Details:
|
| Product Name: | 700Mhz Uav VTX VRX | Number Of Channels: | 8 Channels |
|---|---|---|---|
| Transmit Power: | 4W | Distance: | 30-40km LOS |
| Frequency: | 700Mhz | VTX Weight: | 60g |
| High Light: | 700Mhz FPV Analog Video Transmitter,Long Range FPV Analog Video Transmitter,Wireless FPV Analog Video Transmitter |
||

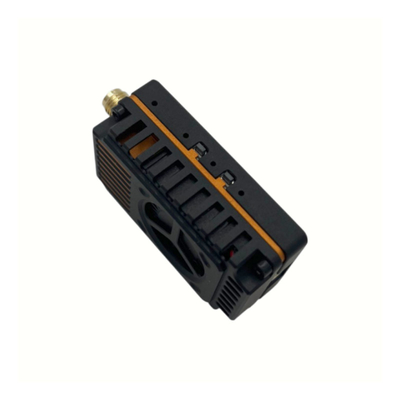

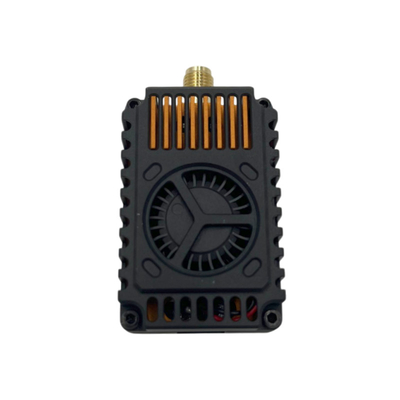

700Mhz FPV Analog Video Transmitter with Long Range Wireless VTX for UAV Video TX
600Mhz FPV VTX Specification:
| Voltage | DC 12V |
| Current | 1A |
| Modulation | FM |
| Frequency | 700Mhz |
| Channels | 8 channels |
| Frequency band |
680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz. (300-900mhz optional). |
| Transmit Power | 4 watt |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 60g |
| Dimensions | 60*42*19mm |
Antenna must be connected before power, otherwise it will be easy to burned-out!
VRX Specification:
| Voltage | DC 12V |
| Receiving sensitivity | -77DB |
| Modulation | FM |
| Frequency | 700Mhz |
| Channels | 8 channels |
| Frequency band | 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 19g |
| Dimensions (L * W * H) | 75*45*20mm |
A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation
C. Set the same channel with transmitter and receiver
