Product Details:
|
Modulation: | FM | Frequency Band: | 2.2G(2000MHz-2280MHz) |
---|---|---|---|
Antenna Port: | SMA | Number Of Channels: | 8 Channels |
Weight: | 15.6g | Protocol: | IRC |
RF Power: | 1.6W | Power Supply: | 7-36V |
Highlight: | Open Area Wireless Radio Transceiver,500M Distance Wireless Radio Transceiver,Strong Signal Wireless Radio Transceiver |

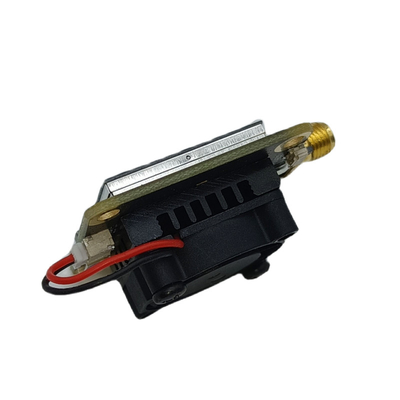

2.2G 1.6W Drone Analog Video Transmitter 2.2Ghz FPV VTX Long Range Video Transmission
Description:
Report Item / Suspicious Activity
Main Features of VTX
Channel: 8CH
Control protocol IRC Tramp, supporting OSD parameter tuning;
Power: PIT 25mW, 200mW, 1600mW;
Efficient DC/DC power supply supports 7-36V;
Supports 5V voltage output;
Support installation of flying towers (30.5 * 30.5MM/M3 hole position)
Product parameters
Transmitter (sky end):
Input voltage: 7-36V DC (2-6S)
Output voltage: 5V/0.5A
Weight: 22g (excluding antenna)
Dimensions (length, width, and height): 37mm * 46 * mm * 17.5mm (including SMA head and fan)
Video format: PAL/NTSC
Number of channels: 8 channels

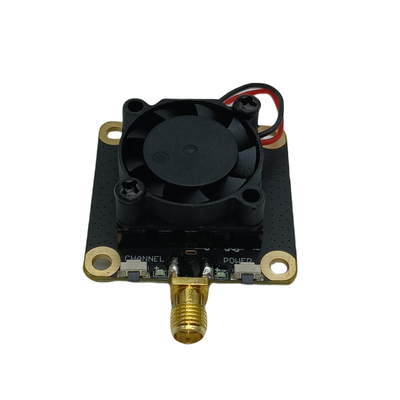

Channel selection: Frequency adjustment button: Short press to switch frequency

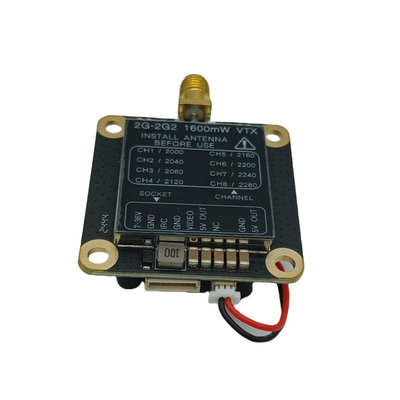

Transmission frequency: CH1 2000MHz CH2 2040MHz. CH3 2080MHz. CH4 2120MHz
CH5 2160MHz CH6 2200MHz CH7 2240MHz CH8 2280MHz
Transmission power: 33dBm ± 1dBm (MAX)
Power adjustment: Power adjustment button, short press to switch
Power output: Three levels, 25mW, 200mW, 1600mW;
Antenna interface: SMA head external tooth internal hole
Modulation type: FM
The UAV Video Transmitter product technical support and services include:
Product Packaging:
Shipping Information:
Q: What is the brand name of this video transmitter?
A: The brand name of this video transmitter is Kimpok.
Q: What is the model number of this video transmitter?
A: The model number of this video transmitter is KP-AHD200MW.
Q: What certifications does this video transmitter have?
A: This video transmitter has CE/FCC/ROHS certifications.
Q: Where is this video transmitter manufactured?
A: This video transmitter is manufactured in China.
Q: What is the minimum order quantity for this video transmitter?
A: The minimum order quantity for this video transmitter is 1 set.
Q: Is the price of this video transmitter negotiable?
A: Yes, the price of this video transmitter is negotiable.
Q: What are the payment terms for this video transmitter?
A: The payment terms for this video transmitter are T/T.
Q: What is the supply ability of this video transmitter?
A: The supply ability of this video transmitter is 3,000 pieces per month.
Q: What is the delivery time for this video transmitter?
A: The delivery time for this video transmitter is 3-7 days.
Q: What are the packaging details for this video transmitter?
A: The packaging details for this video transmitter are export standard packing.
