5.8G 5W UAV Video Transmitter and Receiver 5.8Ghz Audio Video Transmission for Drone FPV VTX

5.8G 5W UAV Video Transmitter and Receiver 5.8Ghz Audio Video Transmission for Drone FPV VTX

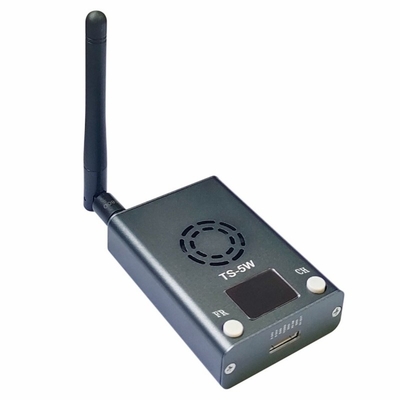

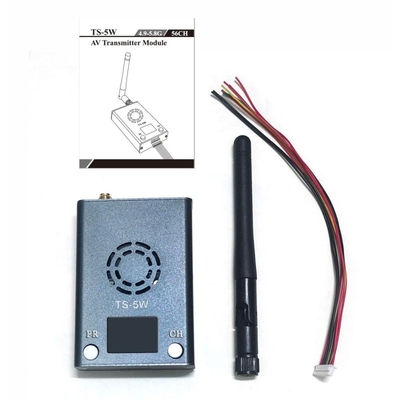

Transmitter specification:

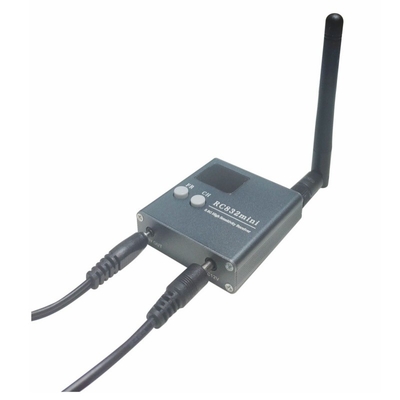

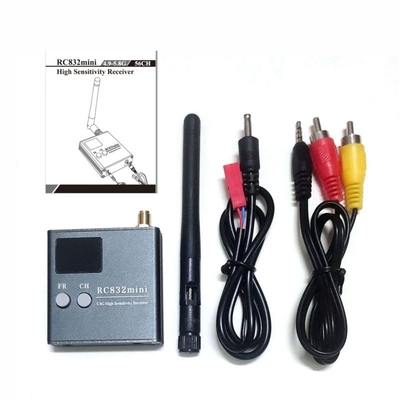

Receiver specification:

Operation method:

After powering on and turning on the digital tube, it will display the last saved frequency band and channel,
1. Implement module channels through two buttons_ CH, frequency band_ FR adjustment, and a power on button (note: be sure to turn it on after the antenna is installed, otherwise it will burn out the power amplification IC):
A: Frequency band adjustment:
In the initial startup state, press the FR button to adjust the current frequency band. Short press the FR button (about 0.5s) once to switch the frequency band from 1 to 2, and the digital display will switch from 1 to 2; Short press the FR button again (about 0.5S), the frequency band will jump from 2 to 3, the digital tube will display from 2 to 3, and so on. The frequency band will be displayed in sequence at A B. Loop between E.F.R.L.X, digital display shows loop between 1.2.3.4.5.6.7.

B: Channel adjustment:
Press the CH button to adjust the current channel. Short press the CH button (about 0.5s) once to switch the frequency band from 1 to2, and the digital display will switch from 1 to 2; Short press the CH button again (about 0.5S), the frequency band will jump from 2 to 3, and the digital display will go from 2 to 3... and so on, the frequency band will cycle between 1.2.3.4.5.6.7.8, and the digital display will cycle between 1.2.3.4.5.6.7.8.

C: Power on:
After confirming that the matching antenna is installed properly, press the power on button and the transmitter will start working normally. Be careful not to block the cooling fan window of the transmitter.

Support and Services:

The UAV Video Transmitter product comes with a comprehensive technical support package to help customers get the most out of their purchase. Services include:

• Expert advice on product installation and set-up
• Troubleshooting assistance for any technical issues
• Regular firmware updates to ensure optimal performance
• Access to user manuals and documentation

In addition, we offer extended warranty plans and repair services to ensure that customers can continue to use their UAV Video Transmitter with confidence.

Packing and Shipping:

Product Packaging:

The UAV Video Transmitter product will be packed in a sturdy cardboard box with internal padding to prevent any damage during shipping. The box will also be sealed with high-quality packaging tape to ensure the product is secure and protected.

Shipping:

The UAV Video Transmitter product will be shipped via a reputable courier service to ensure timely and reliable delivery. Customers will receive a tracking number to monitor the progress of their shipment. Please allow 3-5 business days for delivery within the United States and up to 10 business days for international delivery.

FAQ:

Q: What is the brand name of this video transmitter?

A: The brand name is Kimpok.

Q: What is the model number of this video transmitter?

A: The model number is KP-AHD200MW.

Q: What certifications does this video transmitter have?

A: This video transmitter is certified by CE, FCC, and ROHS.

Q: Where is this video transmitter made?

A: This video transmitter is made in China.

Q: What is the minimum order quantity for this video transmitter?

A: The minimum order quantity is 1 set.

Q: What is the price of this video transmitter?

A: The price is negotiable.

Q: What are the payment terms for this video transmitter?

A: The payment terms are T/T.

Q: What is the supply ability for this video transmitter?

A: The supply ability is 3,000 pieces per month.

Q: What is the delivery time for this video transmitter?

A: The delivery time is 3-7 days.

Q: What are the packaging details for this video transmitter?

A: The packaging details are export standard packing.
