Product Details:
|
| Type: | Wireless Video Transmission | Power: | DC 12V |
|---|---|---|---|
| Frequency: | 1060MHz-1380MHz | Transmit Power: | 2W |
| Modulation: | FM | Channel: | 8 Channels |
| Highlight: | 1.2Ghz mini vtx,20km mini vtx,2W fpv video transmitter |
||

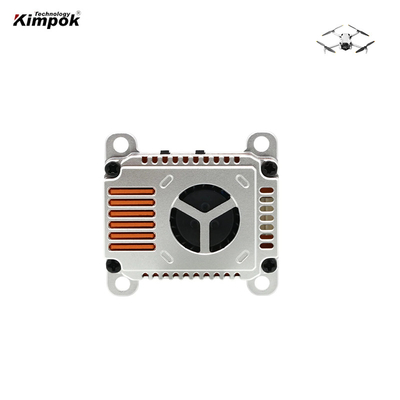

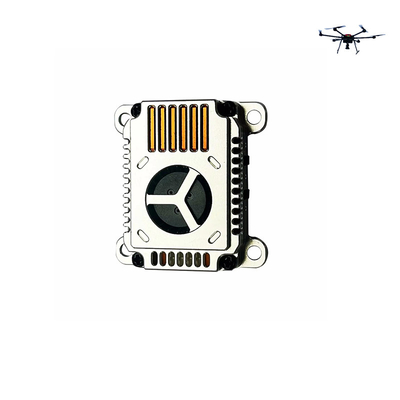

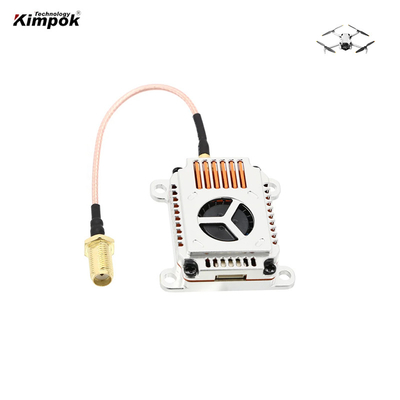

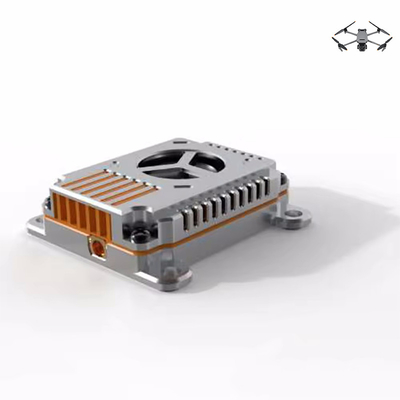

1.2Ghz 20km FPV Video Transmitter 2W VTX 8 Channels Analog Wireless Transmission for Drone
Description:
KP-12TX2WD wireless video transmission equipment has superior performance in all aspects, and its power margin is large, more suitable for complex physical environments. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 10~30km or so, if the raising of the high gain directional antenna, increased to 40km LOS on ground; and up to 40km LOS from air to ground. And transmitter technology is superb and the special metal is more beneficial to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
VTX Parameter:
| Voltage | 12V DC |
| Heat-dissipating method | aluminum alloy heat sink+fan |
| Frequency | 1.2GHz (1060MHz-1380MHz) |
| RF power | 2 watt |
| Input voltage | DC 7V-36V, supporting 2-8S battery input |
| Antenna interface | MMCX |
| Temperature | -10℃~ +50℃ |
| Weight | 16g |
| Dimensions (L*W*H) | 37.7*36.1*11mm |
| Maximum power | IRC Tramp |
