Product Details:
|
| Modulation: | COFDM 2K | RF Power: | 1-2 Watt (adjustable) |
|---|---|---|---|
| Video Compression: | H.265/H.264 | Encryption: | AES 128/256 Bits |
| Bandwidth: | 2/2.5/4/8MHz | Voltage: | DC 12V |
| High Light: | 60km UAV Video Transmitter,H.265 UAV Video Transmitter,AES COFDM Wireless Transmitter |
||
60km COFDM UAV Video Transmitter AES Encryption High Speed Wireless data link H.265
Description:

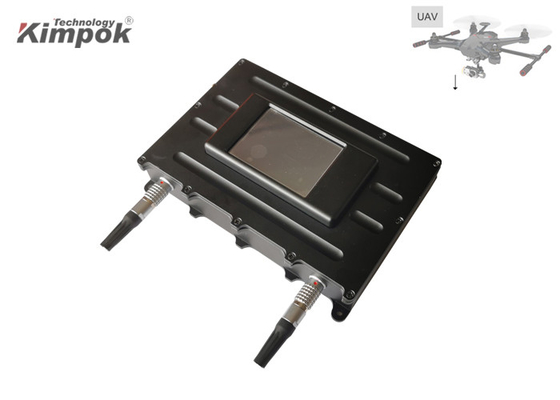

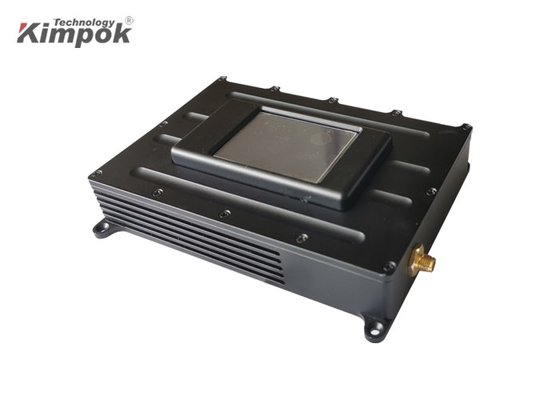

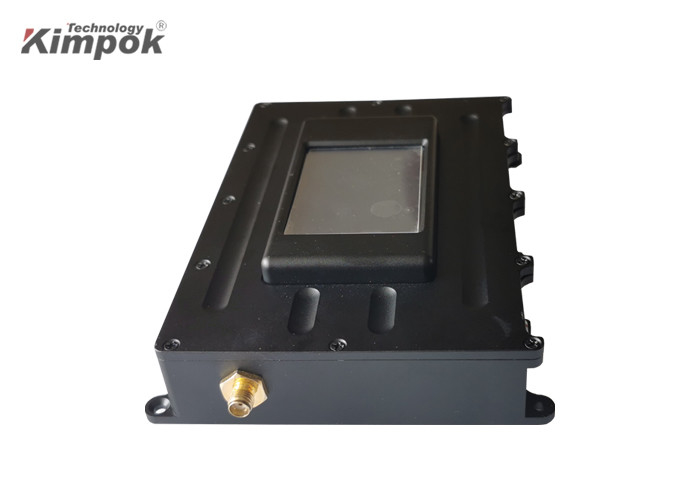

KP-HDT2W is an ultra-thin, ultra-small wireless communication device with integrated OLED display control interface with high brightness and low power consumption. Itscan transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.
KP-HDT2W widely used in UAV aviation filming, UGV/Robot, military, covert investigation, image monitor and real-time wireless video transmission and so on. With four holes at the bottom of the transmitter for fixed installation.
Feature:
● COFDM modulation technology ensure the stability of signal;
● Support FULL HD video quality,1080i/P@30fps;
● Built-in with HDM-I or AHD ports;
● Provide AES128 encryption for video safety;
● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz;
● 2-5W rf power adjustable;
● Low delay time;
● Widely used in helicopter shooting, Live broadcast and etc…
Parameters:
| Frequency | 300-900Mhz (option), or other band customized |
| Modulation | COFDM |
| Consumption | <40W |
| Encryption | AES 128 bits |
| Constellation | QPSK(4QAM),16QAM,64QAM |
| FEC | 1/2 2/3 3/4 5/6 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Carrier | 2K,8K |
| Bandwidth | 2/3/4/6/7/8MHz (option) |
| Video rate | 200kps~20000kps (adjustable) |
| RF power | 1~2 watt (adjustable) |
| Video input | HDM-I,CVBS,AHD,HD-SDI (option) |
| Video coding | H.265/H.264 |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL |
| Transmission distance | 40~60km from UAV to ground station; 1km NLOS on ground |
| Working voltage | DC12V |
| Working Temperature | -20℃ -- +55℃ |
| Dimension | 132*90*26mm |
| Weight | 420g |
| Box colour | Black |
| Antenna port | N type |
