Product Details:
|
| Modulation: | COFDM | RF Power: | 1W |
|---|---|---|---|
| Frequency: | 300~900MHz | Encryption: | AES 128/256 Bits |
| Data: | RS232 | Video Input: | HDM-I/CVBS |
| High Light: | Military Long Range Video Transmitter,RS232 Long Range Video Transmitter,TTL Drone Video Transmitter |
||
Military Defense UAV Video Transmitter with RS232 / TTL Serial Port for Mavlink
Description:

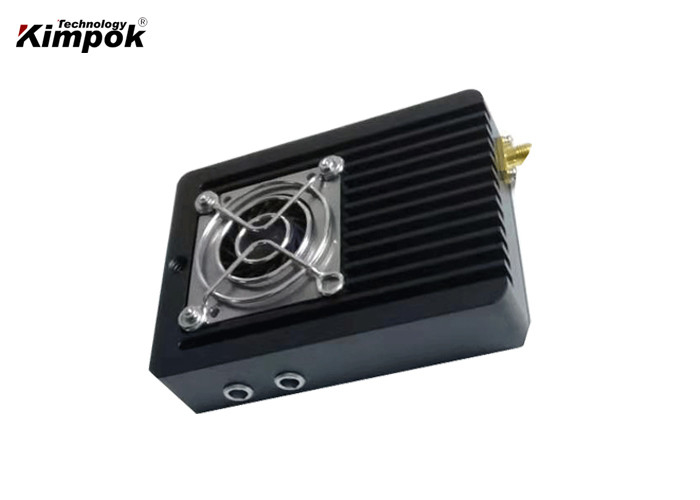

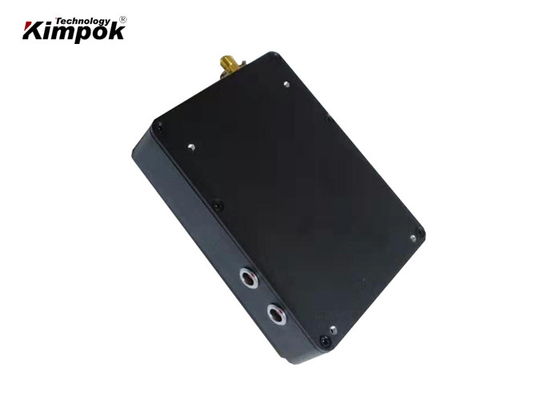

KP-HDT1W is a micro new customized full HD COFDM video transmitter, specially designed for UAV/Drone, UGV and man-pack use. It is a rugged, miniature, high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for two-way data transmission.
The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular, COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.
Features:
* COFDM modulation;
* Small size, lighter and low power consumption;
* Full hd video resolution,H.264/H.265 compression;
* inbuilt with HDM-I and two- way data serial port;
* Heat dissipation with aluminum case;
* Great security by AES user defined encryption;
* Ideal for UAV/UGV and hidden mission use;
* Low latency;
Transmitter Specification:
| Voltage | DC12V |
| Power supply | DC12V/600mA |
| AV input |
HDMI: support HD1080P/1080I,720P,576,480; |
| Data serial port |
RS485/RS232/TTL, two-way communication Integrate multiple radio links into one to transmit and receive. Support SBUS/Mavlink/TTL communication module |
| Frequency | 300~900MHz (optional); other frequencies customized |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| RF power | 1Watt (30dBm) |
| Encryption | AES -user defined password |
| Modulation | COFDM,2K,QPSK |
| Constellation | QPSK,16QAM,64QAM |
| Carrier | 2K,8K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| FEC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Resolution | 720P ,1080i/1080P@60fps |
| Parameter control method | User can Set up the related parameters by the control buttons |
| Built-in small LCD | display parameters,but will be shut up in 3 seconds after on. |
| Power switch | ON/OFF simple operation |
| CNR(weighting) | ≥58 dB |
| Sloping field SNR | ≥50 dB |
| RF Interface | SMA |
| Video formats | PAL/NTSC(self-adaption) |
| Low latency | 200ms |
| Working temperature | -20℃～75℃ |
| Dimension | 100*60*16mm |
| Weight | 133g(without battery) |
