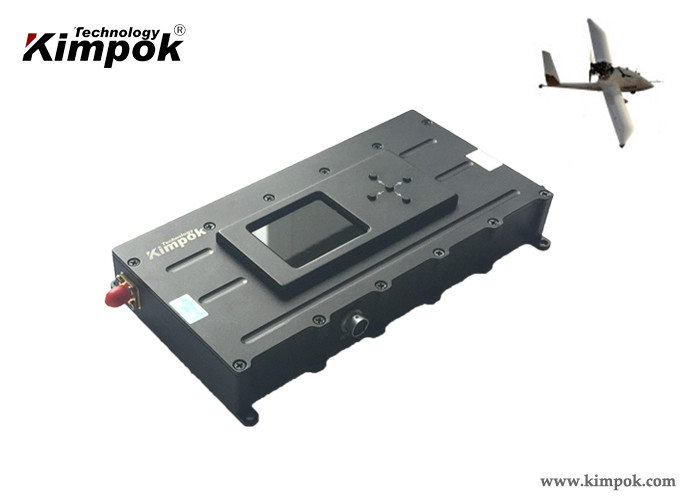

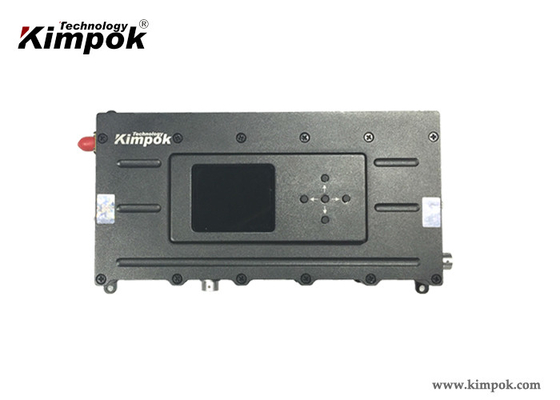

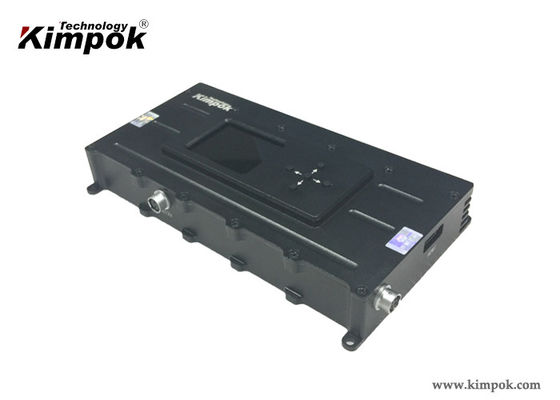

Long Range Video Transmitter For UAV

Long Range Video Transmitter For UAV
Long Range Video Transmitter For UAV Long Range Video Transmitter For UAV Long Range Video Transmitter For UAV

Large Image :  Long Range Video Transmitter For UAV

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE/FCC/ROHS
Model Number: KP-HDT103
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiaiton
Packaging Details: export standard packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 3,000pcs per month

Long Range Video Transmitter For UAV

RF Bandwidth: 4/8MHz(adjustable) RF Power: 1-3W
Encryption: AES128/256bits AV Interface: HD/SDI(have To Choose One)
Dimension: 167*90*25mm Weight: 515g
High Light:

SDI Long Range Video Transmitter


FPV Long Range Video Transmitter


1080P Wireless Video Transmitter

Long Range COFDM Video Transmitter and Receiver HD / SDI Wireless Video Link FPV / Drone


HD UAV COFDM Transmitter Introduction:


Such new design 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.264 encoding format and HD/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.



  1. Low delay,lightweight,live broadcast;
  2. COFDM modulation;
  3. Support Full- HD quality image;
  4. Support 1080i/1080P HD transission;
  5. Support composite standard video and balanced audio input;
  6. Built-in with HDM or HD-SDI interface(single selection);
  7. All parameters can be adjusted by user;



Power section
DC Input DC11V~DC16V
Working Current ≤1.1A@DC12.5V
Transmitter section:
Frequency range Output 250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-3W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
AV Interface HD/SDI(have to choose one)
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HD(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Versions HD 1.3
HDCP protocol Yes
Encoding support
AV rate 64, 96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃

1-40km LOS distance(on air)

1-2km NLOS distance(Ground to ground)

Appearance characteristics
Dimension 167*90*25mm
Weight 515g


HD COFDM Video Transmitter and Receiver Application:


Lightweight 1080P Long Range HD Video Transmitter Wireless Special for UAV / Drones


Our Service:


1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.


Whatever your wireless surveillance application or budget, we can find the right solution for you.

Contact us! We can customize any solution to fit your requirements.
