Product Details:
|
Power Output: | 30dBm | DC Input: | DC 7.2V |
---|---|---|---|
RF Bandwidth: | 4/8MHz(adjustable) | AV Interface: | HDMI/SDI;AV |
Weight: | 195g(without Battery) | Frequency: | 300-1400MHz(option) |
Highlight: | cofdm hd wireless transmitter,wireless cofdm data link,20km Mini COFDM Video Transmitter |

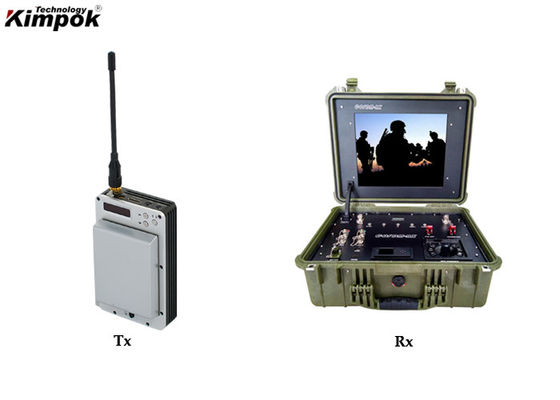

Portable COFDM Wireless Video Transmitter Ultra Light Weight With Battery
Description:
This exclusive design Mini H.264 HD wireless video transmitter KP-HDS1000A is using the 4th generation mobile communication core COFDM multi-carrier modulation technology, high efficiency innovative H.264 compression encoding, integrated with high light,low power consumption of OLED display control panel, integrating digital modulation,audio and video compression in combo,highly integrated HD move, NLOS digital video transmission equipment.
Its advantages small size, light weight that can transmit high quality full 1080P HD video and audio even though there are some building blocks or high-speed mobile shooting.
It's widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.
Feature:
1. COFDM modulation, stable transmission
2. H.264 video compression, DVD video quality;
3. 1080P HD transmitter,minimum volume, lightweight and safety;
4. NLOS/LOS distance: 500m/20km;
5. Only 150ms delay for whole system working;
6. New exclusive design COFDM product, very easy for carrying and hiding.
7. Lithium battery for power supply(continuous working time is 1 hours max)
8. Adjustable working frequency, bandwidth, RF power and etc.
9. Transmission security by encryption of AES 265 bit
10. Good quality image without any mosaic;
11. Transmitter only has 195g net weight(without battery),very easy for portable and UAV applications.
12. Matched with multifunction amplifier for longer range requirement.
Specification:
Voltage | DC7.2V(7.2V/1400mA standard matching mini battery) |
Current | 1A |
Video Input |
AV:3.5mm port,connect to standard resolution analog video signal Camera:2.5mm port,connect to HD camera; HD-SDI/HDMI:support HD1080P,720P,576,480; with audio demultiplexing function) |
Frequency | 300-1400MHz(option) |
Bandwidth | 2/2.5/4/8MHz(adjustable) |
Output power | 30dBm max(100-1000mW adjustable) |
Data encryption | AES128/256bits |
Modulation | COFDM |
FEC | 1/2,2/3,3/4,7/8 |
Guard Interval | 1/32,1/16,1/8,1/4 |
Video Compression | H.264 |
Standard Video Format | PAL/NTSC (autoadaptation) |
Parameter control method | Set the related parameters through the control panel |
RF Interface | SMA |
Working temperature | -20℃~75℃ |
Transmission distance |
1-20km max LOS(on air) 300-500m NLOS(body-worn) |
Dimension | 100*59*22mm |
Weight | 195g(without battery) |
Application:
