Product Details:
|
| Frequency: | 300MHz-4.4GHz | Power: | 200mW |
|---|---|---|---|
| Encryption: | AES 128bit (user-defined Password) | Carrier: | 2K, 8K |
| Case Material: | Aluminum Alloy | Weight: | 420g |
| High Light: | COFDM UAV Video Transmitter,10km UAV Video Transmitter,200mW HDMI Extender Tx Sender |
||

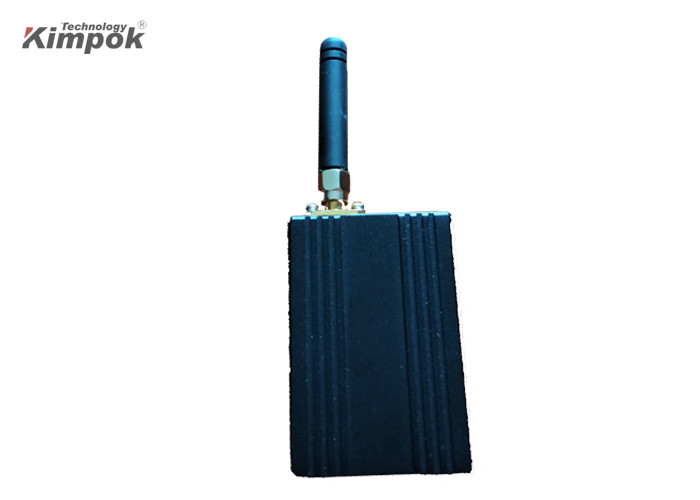

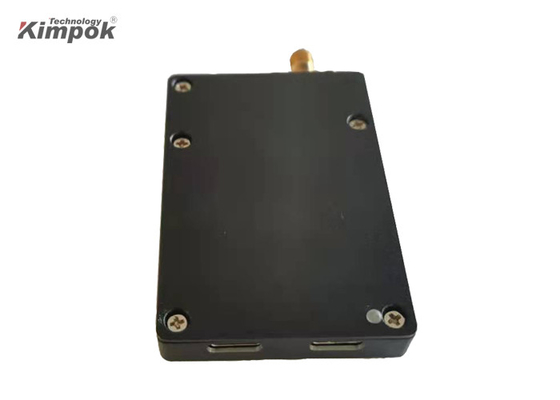

10km COFDM Wireless UAV Video Transmitter PTP Transmission for Navy Drones
COFDM UAV Video Transmitter Introduction:
KP-AHD200MW miniature 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.265 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.
Robot Transmitter Features:
Specification:
| Voltage | DC5V~DC14V |
| Current | ≤0.6A DC12V |
| Video input | CVBS: support HD1080P,720P,576,480; 30FPS |
| Control input | RS232; 192000bps |
| Frequency | 300mHz-900mHz (optional) |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| Output power | 200mW |
| Data encryption | AES 128bit (user-defined password) |
| Modulation | COFDM |
| Modulated mapping | QPSK(4QAM); 16QAM; 64QAM |
| Bandwidth | 2/4/6/8M (adjustable) |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Standard Video Format | PAL/NTSC (auto adaptation) |
| Parameter control method | Set the related parameters through the control panel |
| RF Interface | SMA |
| Working temperature | -20℃~75℃ |
| Transmission distance | 10km LOS (on air); 500m on ground station |
| Dimension | 132*90*26mm |
| Weight | 420g |
