Product Details:
|
Product Name: | High Speed Wireless Radio Modem | Interface: | RS232/RS485 |
---|---|---|---|
RF Power: | 30W | Sensitivity: | ≤- 120dBm (12dB SINAD) |
Frequency: | 150MHz~900MHz | Power: | DC12-14V |
Highlight: | 868MHz Wireless Radio Modem,UAV Data Link Wireless Radio Modem,115200bps Data Radio Modem |

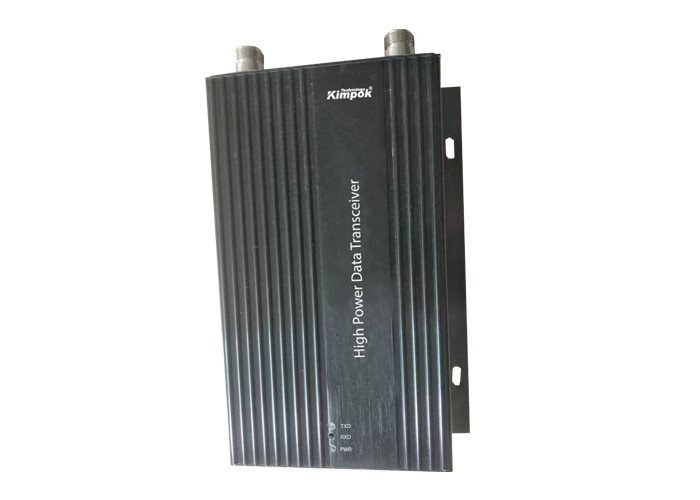

150MHz~868MHz UAV Data link 115200bps High Speed Wireless Radio Modem
Features of Data Radio:
◆ Transmission rate: 1200bps, 2400bps, 4800bps, 9600bps, 115200bps
◆ Voice or data compatible with transparent signal transmission
◆ frequency range: 150MHz, 230MHz, 350MHz, 433MHz, 450MHz, 868Mhz.
◆ can be set to 256 frequency points, each frequency interval 25kHz (standard)
◆ receive, send one, digital analog signals can be sent, switch quickly
◆ air send and receive frequency can be the same frequency, but also different frequency
◆ Double phase-locked loop, double VCO structure, high stability
◆ internal use of imported power amplifier module 30W
◆ interface using standard TTL, RS232 serial (or 485) level, you can directly control the keyboard or personal computer
◆ SMT process, stainless steel shell, small size, easy installation, external heat sink
◆ comes with N antenna interface, can be directly connected to the antenna launch
Specification:
Transmitter index | |
Modulation: | FSK / MSK |
Transmit power: | 30 watt |
Modulation distortion: | ≤ 3% |
Modulation sensitivity: | 100mV (3KHz SINAD) |
Adjacent channel power ratio: | ≥65dB |
Spurious RF component: | ≤- 65dB |
Receiving index | |
Available Sensitivity: | ≤- 120dBm (12dB SINAD) |
Residual level output: | ≤- 45dB |
Modulation reception bandwidth: | ≥ 5KHz |
Adjacent channel selectivity: | ≥65dB |
Intermodulation immunity: | ≥ 60dB |
Spurious response Immunity: | ≥65dB |
Demodulation output: | ≥0.2V audio voltage |
Comprehensive index | |
Working frequency band: | 150MHz, 230MHz, 350MHz, 433MHz, 450MHz, 868MHz |
Frequency stability: | ± 2.5ppm |
Channel spacing: | 25kHz |
Antenna impedance: | 50Ω |
Ambient temperature: | -30 ℃ ~ +60 ℃ |
Frequency setting: | DIP switch or computer write frequency |
Data transfer rate: | 1200bps, 2400bps, 4800bps, 9600bps, 115200bps |
Interface: | TTL, RS232, RS485 |
DC voltage: | DC12-14V |
Standby current: | ≤ 50mA |
Operating current when transmitting: | ≤7.6A (transmission power of 30W) |
Transmission distance: | Omni 30km in city |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: Can I order 1 sample for test?
Yes, we welcome sample order, mixed samples are acceptable.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
