Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication

Certification
China Kimpok Technology Co., Ltd certification
China Kimpok Technology Co., Ltd certification
I'm Online Chat Now

Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication

Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication
Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication

Large Image :  Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE/FCC/ROHS
Model Number: KP-FDD5W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000PCS per month

Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication

Description
Product Name: UAV Data Link Modulation: FDD COFDM
Frequency: 300-1400Mhz Option RF Power: 5W (37dBm)
Weight: 1.75kg Power: 12V DC
Highlight:

100km LOS UAV Video Link

,

Rugged UAV Video Link

,

Low Latency UAV Video Transmitter

Rugged UAV Video Link up to 100km LOS Low Latency Wireless Communication



FPV/UAV data link Description:



KP-FDD5W FDD COFDM IP Transceiver is a new COFDM modulation bidirectional video & data link with 5W output power for portable purpose. Implement of super narrowband (1MHz), low-latency and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications. With highly integrated embedded design, super-linear digital predistortion RF design and network, modulation and demodulation, full-band RF output All-in-One which help you complete the design of long-distance wireless links more conveniently and quickly.

It is mainly used for multi-channel video transmission required with RS232/TTL signals, unmanned control systems, and intelligent control system.



Ethernet video data link Specification:



Modulation
COFDM 2K
Working voltage
DC 11-14V
Working current
2.7A 12V
TX output frequency
550MHz (300-2500MHz selection)
RX input frequency
350MHz (300-2500MHz selection)
RF bandwidth
1/2/4/8MHz
Output power
5 watt
Encryption/decryption mode
AES128 bits
Transfer rate
2x30 Mbit/s uplink and downlink
RF connector
N-type *2
Ethernet
Standard RJ45 port *2
Serial port
RS232/RS485 serial port,115200bps maximum
LCD panel with keypad
Easy to set the related parameters
Dimension
200*130*60mm
Weight
1.75kg



Features:


◆ Bi-directional video/data wireless communication
◆ Low latency and great data send from end to end
◆ Provides great transfer rate for uplink and downlink

◆ 5W RF power output
◆ Transparent IP ethernet and serial data telecommunication in sync
◆ Dual frequency is ideal for IP solution long-distance required
◆ Dynamic AES encryption 128bits
◆ Narrowband 1M/2M/4M/8MHz available
◆ Work well in NLOS fast moving condition
◆ Small in size, lightweight and low consumption
◆ Easy operation and deployment

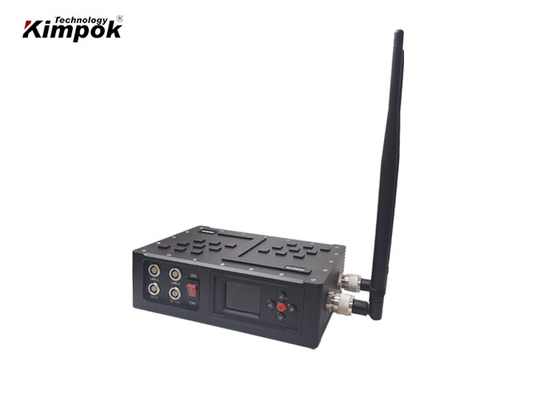

Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication 0

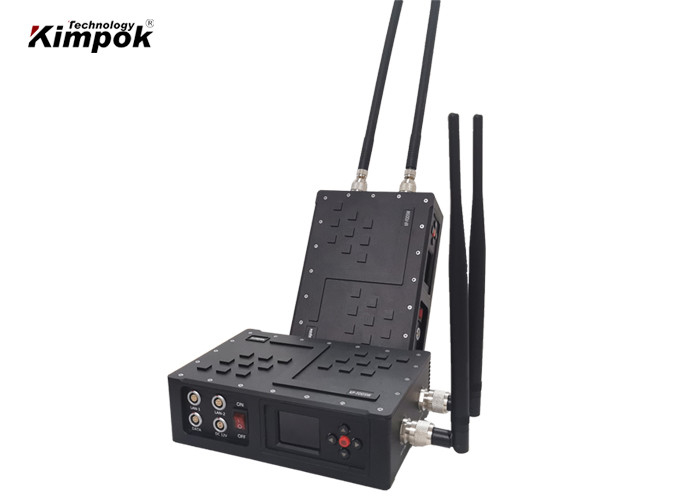

Up To 100km LOS Rugged UAV Video Link Low Latency Wireless Communication 1



FAQ:



Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.



Our Service:



· One-stop ODM/OEM solution;

· 24-hour technical support;

· Lifelong maintenance (Replacement parts will be charged after a year);

· Provide professional system design and construction;

· You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area for over 20 years, we are the source.
