100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265

100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265
100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265 100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265 100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265

Large Image :  100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265

Product Details:
Place of Origin: China
Brand Name: Kimpok Technology / OEM
Certification: CE
Model Number: KP-HDT20WG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$4000~US$5000
Packaging Details: International packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000pcs/month

100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265

Description
Product Name: Drones UGV Video Link Video: Full HD 1080P/I
Modulation: COFDM Bandwidth: 2/4/6/8Mhz
Frequency: 300MHz~900MHz (adjustable) Video Compression: H.265/H.264
Highlight:

OEM UAV Video Transmitter

,

Drones UAV Video Transmitter

,

300MHz Frequency Wireless Video Transmitter

100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265



Drones / UGV AV transmitter Description:



KP-HDT20WG is a powerful COFDM wireless video audio transmitter designed from Kimpok Technology, it's adopts the latest COFDM modulation and narrow bandwidth at its core, which is enable to transmit 1080P/I full HD video quality in fast moving and NLOS (non-line-of-sight) environment.



With 20 watt high RF power, KP-HDT20WG can easily to transmit 10~15km NLOS long distance wireless video and 1920*1080P high definition broadcast quality image in urban area; and 100km LOS from air to ground.



The frequency, RF power, video input, and the housing of the KP-HDT20WG cofdm video transmitter all can be designed and customized based on user's application and requirement.



Parameters:



Modulation

CODFM

DC input

DC12V-DC14V

Working Current

≤4.7A@DC12V

Constellation

QPSK,16QAM,64QAM (optional)

FEC

1/2,2/3,3/4,5/6,7/8 (optional)

Carrier

2K

Guard Interval

1/32,1/16,1/8,1/4 (optional)

Frequency

300MHz-900MHz; 1GHz-2.7GHz customized (50Mhz per interval as a frequency band)

RF power output

5-20W (adjustable)

Encryption

AES128 bits user-defined password

A/V interface

RCA

RF interface

N type

Flatness

≤2dB(within full frequency range), ≤0.5dB(within 8MHz)

Video Harmonic

1Vp-p @ 75Ω, NTSC/PAL adaptive

CBER

<2.0E-4

Video Compression

H.265/H.264/MPEG-4

Resolution

1080P/720P

Video Rate

6Mbps

Work environment

-30~70°

Dimension

220*140*80MM

Weight

2.3kg



Feature:



  • COFDM modulation, Stable transmission

  • H.265/H.264 video compression, DVD video quality

  • Strong casing with built-in two cooling fans

  • Mobile and NLOS video audio transmission

  • Great security by encryption of AES 128/256 bits

  • Low system latency

  • Modular design, compact structure, OEM design

  • Can be customized to add additional features, such as HDM-I/HD-SDI, data port, Ehernet and etc..

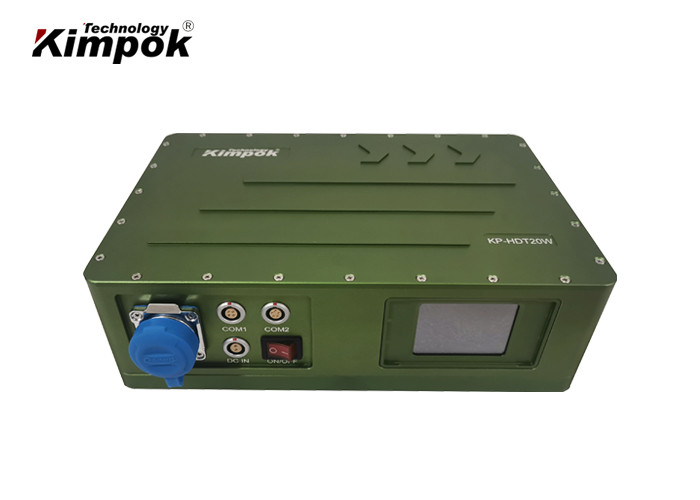

100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265 0

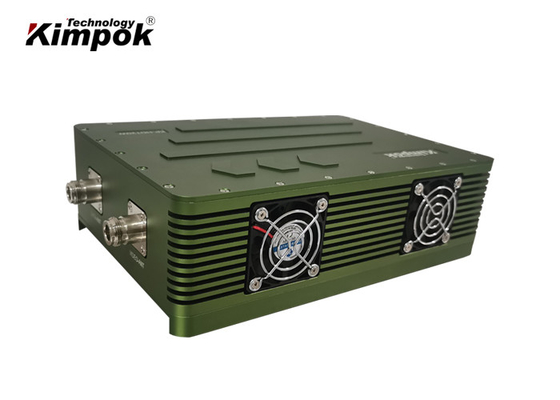

100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265 1

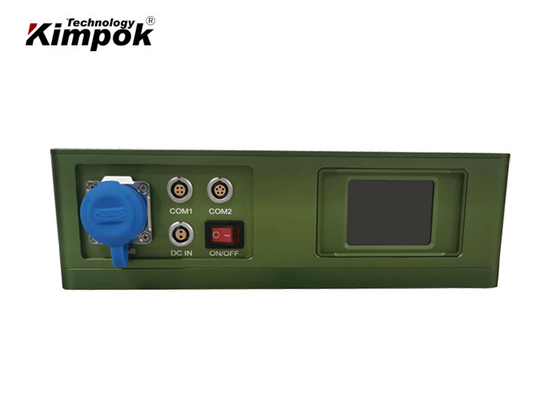

100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265 2



Connection:



100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265 3



Application:



The product is widely used in vehicle, racing, police patrol, maritime, ect. Transmitting full HD mobile video audio long range wireless communication.



100km LOS UAV Video Transmitter Wireless 1080P HD Drones Video Link H.265 4







About Kimpok Technology:



Kimpok technology found 1998, specialized in high quality of COFDM mobile video wireless communication, for application of Law enforcement and military, Public Security Bureaus, R/C helicopter, UAV, UGV, Automobiles, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, and so on.



The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.





FAQ:



Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.



Our Service:



  • One-stop ODM/OEM solution;
  • 24-hour technical support;
  • Lifelong maintenance (Replacement parts will be charged after a year);
  • Provide professional system design and construction;
  • You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
