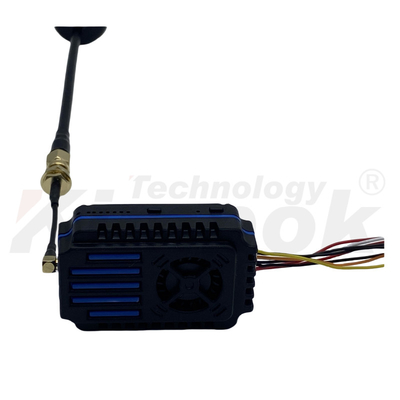

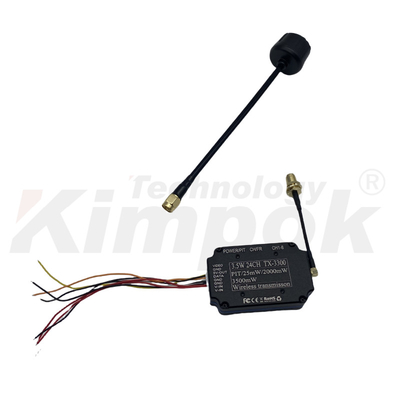

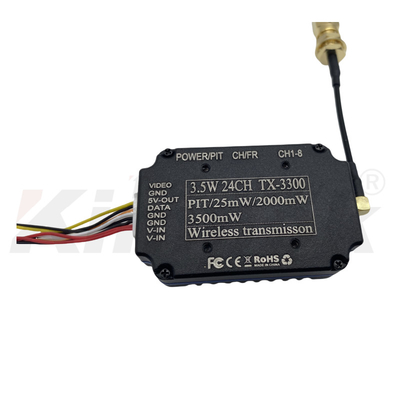

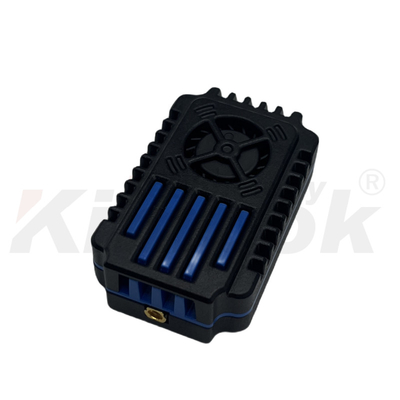

3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module

3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module
3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module 3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module 3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module 3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module

Large Image :  3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module

Product Details:
Place of Origin: China
Brand Name: Kimpok
Certification: CE/FCC/ROHS
Model Number: KP-T3335
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: International standard packing
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 3,000 pieces per month
Contact Now

3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module

Description
Product Category: UAV Video Transmitter VTX Weight: 24.5g
Modulation: FM Number Of Channels: 24 Channels
Protocol: IRC Frequency: 3170MHz-3480MHz
Highlight:

UAV Video Transmitter FPV

,

Open Area FPV

,

2-3km Distance FPV

3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module

VTX Specification:



Item VTX
Power Supply DC7V-36V
Power 25mW,2000mW,3500mW
Control Protocol IRC
Dimension 53.5mm*32.5mm*15.5mm
Weight 24.5g



VRX Specification:



Modulate Wideband FM Modulate
Characteristics Value Units
Min. TYP. Max.
Input Voltage 3.5 5 6 V
Operating Temperature -10 50 65 °C
Receive Sensitivity -92 -95 -98 dBm
Frequency Stability -100 -- +100 ppm
Input Impedance -- 50 -- Ω
Input Standing Wave Ratio -- 2: 1 3: 1
Video Output Impedance -- 75 -- Ω
Signal-to-Noise Ratio -- 38 -- dB
Frequency Response 50Hz ~ 6MHz(±5dB)
Antenna Connector SMA(inner hole)
Weight 12.5 g
Dimensions(LxWxH) 70*26*13 mm


Support and Services:

The UAV Video Transmitter is a reliable and high-quality device designed to transmit video footage from an unmanned aerial vehicle (UAV) to a ground station. Our technical support team is available to provide assistance with installation, setup, and troubleshooting of the video transmitter. We also offer repair and maintenance services to ensure that the device operates at optimal performance. Our team of experts can provide guidance on choosing the right antenna and frequency for your specific needs. Additionally, we offer training services to help users learn how to use the video transmitter effectively and efficiently.



Packing and Shipping:



Shipping:

  • Free shipping within the USA
  • International shipping available at additional cost
  • Ships within 2 business days
  •
3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module 0

3.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module 13.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module 23.3G 3.5W FPV UAV Video Transmitter 3.3Ghz VTX with IRC 24CH 25mW/2000mW/3500mW FPV VTX Module 3
