Video Transmitter PEAK THOR T67 6.1G-7.2G 3W 64 channels 9-28V DC

Video Transmitter PEAK THOR T67 6.1G-7.2G 3W 64 channels 9-28V DC

Description

The PEAK THOR T67 video transmitter supports 5 levels of output power - 25, 200, 500, 1000 and 3000mW. The transmitter is equipped with Smart Audio, which provides fine-tuning of frequency and power, as well as a built-in fan for stable temperature conditions. Support for 64 channels in the range of 6110-7210MHz provides a wide range of operating signal selection options. The SMA connector ensures reliable antenna connection, and the on-screen menu control system facilitates parameter configuration.

Features

• Support for Smart Audio
• Switching power 25/200/500/1000/3000mW

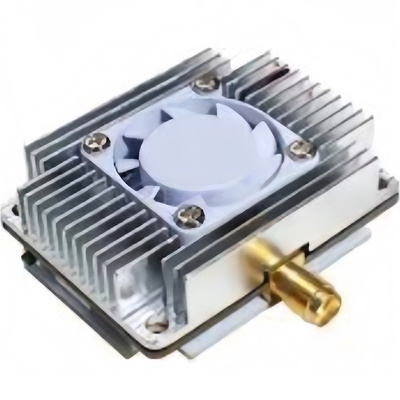

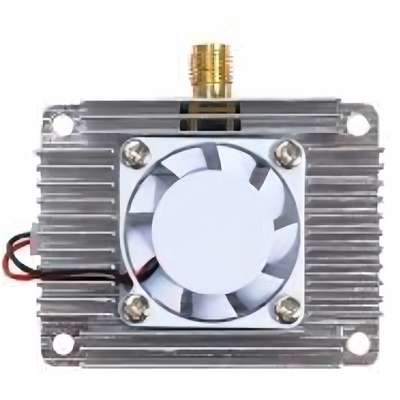

• Design has a built-in fan for active cooling
• OSD configuration via Smart Audio
• Wide input voltage range 9-28V

Specifications

• Operating voltage: 9-28V
• Frequency range: 6110-7210MHz
• Output power: 25/200/500/1000/3000mW
• Power supply: 5V Camera @ under 350mA max
• Antenna connector: SMA
• Cable connector: JST 6Pin
• Control protocol: Smart audio
• Mounting holes: 41.5*30.5mm
• Size: 47*36mm
• Weight: 34g (without antenna)

Package

• 1 x video transmitter PEAK THOR T67 6.1G-7.2G 3W 64 channels FPV VTX
• 1 x cable
