Product Details:
|
| Name: | Omni Antenna | Frequency: | 824~896MHz |
|---|---|---|---|
| Gain: | 8.5dBi | Bandwidth: | 72MHz |
| Vertical Beamwidth: | 10° | Polarization: | Vertical |
| Highlight: | 8.5dBi Omni Whip Antenna,Lora System Omni Whip Antenna,896MHz Outdoor Omni Antenna |
||

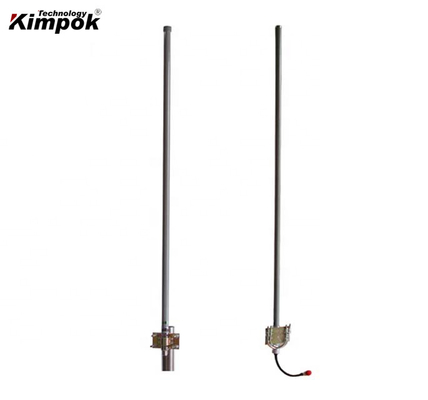

8.5dBi Fiberglass Outdoor Omni Whip Wireless RF Antenna for Lora System
Description:
The KP-OM800D85 is a high performance omnidirectional antenna designed for the 800 MHz / 900 MHz ISM band. It is ideally suited for multipoint, Non Line of Sight (NLOS) and mobile applications where high gain and wide coverage is desired. Typical applications include 900 MHz Wireless LAN, SCADA, Wireless Video Links, LPWAN/IoT/M2M, and 800 MHz as well as 900 MHz Cellular band applications.
This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure.
This omni antenna’s construction features a rugged 1.3" diameter white high intensity fiberglass radome for durability and aesthetics. It is designed for all weather operation.
Suitable for intelligent meter reading, intelligent parking, smart agriculture, intelligent security, smart street lights and many other applications.
Specification:
| Category | Fiberglass Antennas |
| Frequency Range-MHz | 824~896 |
| Bandwidth-MHz | 72 |
| Gain-dBi | 8.5 |
| Vertical Beamwidth-° | 10 |
| VSWR | ≤1.5 |
| Nominal Impedance-Ω | 50 |
| Polarization | Vertical |
| Maximum Power-W | 100 |
| Dimcnsions-m | 1.2 |
| Weight-kg | 1.0 |
| Rated Wind Velocity-m/s | 60 |
| Connector | N Female or customization |
| Mounting Mast Diameter-mm | Ø35~50 |
