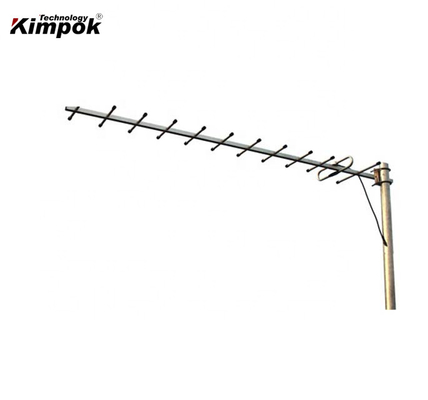

Outdoor CDMA Yagi Wireless RF Antenna 13dbi 824MHz-896MHz For PTP System

Large Image : Outdoor CDMA Yagi Wireless RF Antenna 13dbi 824MHz-896MHz For PTP System

Product Details:

Place of Origin:	China
Brand Name:	Kimpok Technology / OEM
Certification:	CE
Model Number:	KP-Y800Y13

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	International packing
Delivery Time:	7-15 working days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	1000pcs/month

Contact Now

Outdoor CDMA Yagi Wireless RF Antenna 13dbi 824MHz-896MHz For PTP System

Description

Name:	Yagi Antenna	Frequency:	824-896MHz
Gain:	13dBi	VSWR:	≤1.5
Dimension:	1.4m	Weight:	1kg
Highlight:	824MHz Wireless RF Antenna , CDMA Wireless RF Antenna , 896MHz Outdoor RF Antenna

Outdoor CDMA Yagi Wireless RF Antenna 13dbi 824MHz~896MHz for PTP System

Features:

Aluminium alloy material

Full day working

Low VSWR ,high gain

good performance

Application:

CDMA system

digital tv antenna

824-896MHz band

Point to point systems

Specification:

Category	Yagi Antenna
Elements	12 units
Frequency range	824MHz~896MHz
Bandwidth	72MHz
Gain	13dBi
Horizontal Beamwidth	36°
Vertical Beamwidth	32°
Front to Back Ratio	≥18dB
VSWR	≤1.5
Nominal impedance	50Ω
Polarization	Vertical or horizontal
Maximum power	100W
Dimensions	1.4m
Weight	1.0kg
Wind strength	0.6m/s
Connector	N female or Customized
Rod diameter-mm	Φ35~50

Outdoor CDMA Yagi Wireless RF Antenna 13dbi 824MHz-896MHz For PTP System 0
