Product Details:
|
| Name: | Yagi Antenna | Frequency: | 824-896MHz |
|---|---|---|---|
| Gain: | 9dBi | Elements: | 5 Units |
| Horizontal Beamwidth: | 54° | Vertical Beamwidth: | 48° |
| High Light: | Directional Yagi Wireless Antenna,Outdoor Yagi Wireless Antenna,9dbi Roof Top Antenna |
||

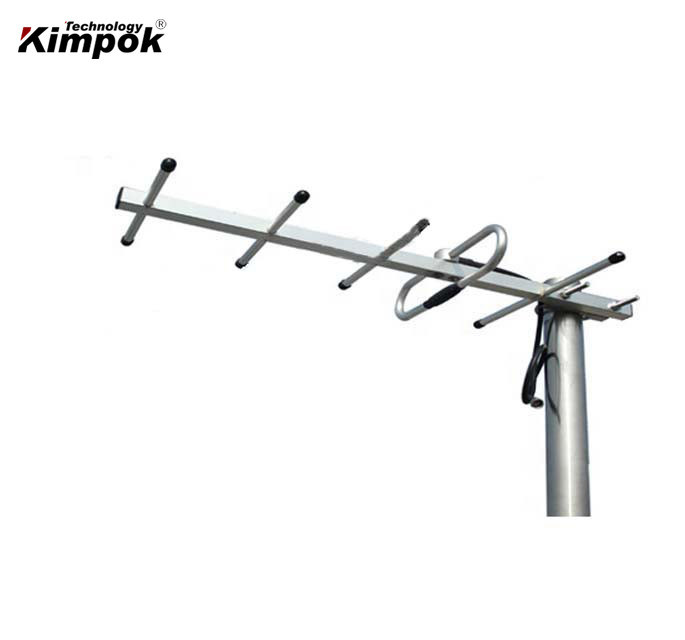

Outdoor Directional Yagi Wireless Antenna 5dbi Roof Top Antenna for Booster
Features:
Aluminium alloy material
Full day working
Low VSWR ,high gain
good performance
Application:
CDMA system
Digital tv antenna
824-896MHz band
Point to point systems
Specification:
| Category | Yagi Antenna |
| Elements | 5 units |
| Frequency range | 824MHz~896MHz |
| Bandwidth | 72MHz |
| Gain | 9dBi |
| Horizontal Beamwidth | 54° |
| Vertical Beamwidth | 48° |
| Front to Back Ratio | ≥15dB |
| VSWR | ≤1.5 |
| Nominal impedance | 50Ω |
| Polarization | Vertical or horizontal |
| Maximum power | 100W |
| Dimensions | 0.5m |
| Weight | 0.4kg |
| Wind strength | 60m/s |
| Connector | N female or Customized |
| Rod diameter-mm | Φ35~50 |
