Product Details:
|
| Name: | Panel Antenna | Frequency: | 433MHz |
|---|---|---|---|
| Gain: | 11dBi | Bandwidth: | 30MHz |
| Maximum Power: | 500W | Weight: | 11kg |
| High Light: | 11dbi Base Station Panel Antenna,433Mhz Base Station Panel Antenna,Directional 433Mhz High Gain Antenna |
||

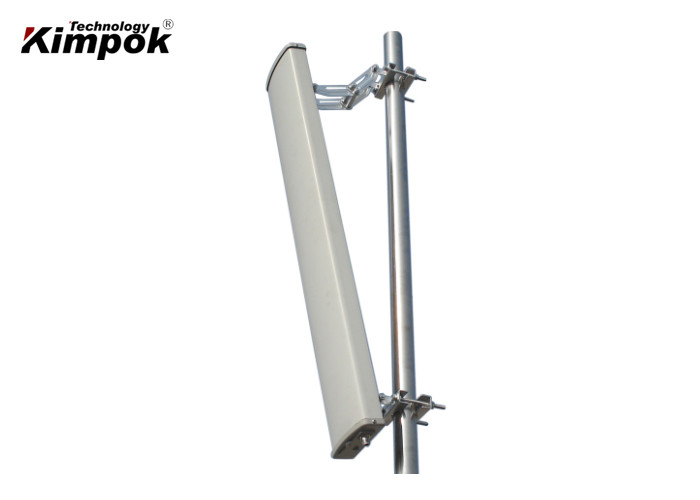

433Mhz Wireless RF Antenna 11dbi Directional Base Station Panel Antenna
Description:
KP-433D11 directional pannel antenna designed to transmit signals from/to GSM repeater. Pannel antenna has a wider beam, which causes the signal to cover a larger area.
Panel antennas are common at Ultra high frequency (UHF) frequencies, where they are often used for cellular/mobile base stations or wireless networking due to their size and directional properties.
Application :
Features :
Specification:
| ELECTRICAL SPECIFICATIONS | |
| Frequency Range | 433MHz |
| Bandwidth | 30MHz |
| Gain | 11dBi |
| Horizontal Beamwidth | 90°deg |
| Vertical Beamwidth | 30°deg |
| VSWR | ≤1.5 (Center frequency: ≤1.2) |
| F/B Ratio | ≥16dB |
| Polarization | Vertical |
| Max Power | 500W |
| Nominal Impedance | 50Ohms |
| MECHANICAL SPECIFICATIONS | |
| Lightning Protection | Direct Ground |
| Connector Type | N female |
| Antenna dimensions -H×W×D | 1300×280×125mm |
| Weight | 11kg |
| The Work Temperature | -30℃~60℃ |
| Rated Wind Velocity | 60m/s |
| MATERIAL | |
| Radome Material/Color | PVC+UV resistance |
| Mounting Hardware Material | Hot-galvanized Steel |
| Radiating Element Material | Aluminum |
| Reflector Material | Aluminum |
| ORDERING INFORMATION | |
| Packing Dimensions | 1350×320×240mm |
| Mounting Pipe Diameter | Φ50~70mm |
Pattern for your reference:
|
Horizontal Pattern |
Vertical Pattern |
|
|
|
