Product Details:
|
| Name: | Omni Antenna | Frequency: | 824~896MHz |
|---|---|---|---|
| Gain: | 6dBi | Bandwidth: | 72MHz |
| Vertical Beamwidth: | 30° | Polarization: | Vertical |
| Highlight: | 6dbi Wireless RF Antenna,800MHz Wireless RF Antenna,Fiberglass Omni Directional Antenna |
||

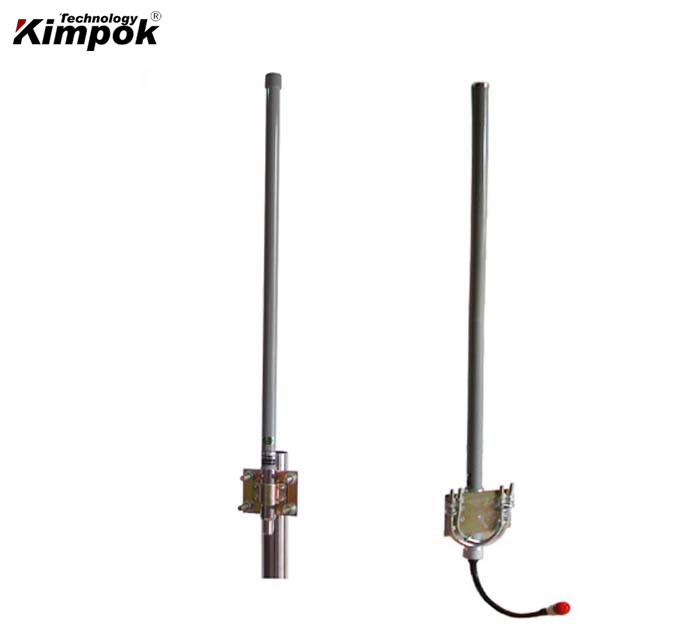

CDMA 6dbi 800MHz Wireless fiberglass Omni Directional Antenna PTMP System
Features:
1. Strong anti-shock, waterproof and anti-corrosion ability;
2. Full day working;
3. Optimized size;
4. High gain, low VSWR, strong anti-interference ability.
Application:
Outdoor harsh environment applications, no-man's land, ships, base stations, communication repeaters,
Suitable for intelligent meter reading, intelligent parking, smart agriculture, intelligent security, smart street lights and many other applications.
Specification:
| Category | Fiberglass Antennas |
| Frequency Range-MHz | 824~896 |
| Bandwidth-MHz | 72 |
| Gain-dBi | 6 |
| Vertical Beamwidth-° | 30 |
| VSWR | ≤1.5 |
| Nominal Impedance-Ω | 50 |
| Polarization | vertical |
| Maximum Power-W | 100 |
| Dimcnsions-m | 0.6 |
| Weight-kg | 0.6 |
| Rated Wind Velocity-m/s | 60 |
| Connector | N Female or customization |
| Mounting Mast Diameter-mm | Ø35~50 |
